COLD TACK SPRAYERS
Available Sizes
Portable
115 gal
Marathon’s cold tack sprayers are capable of spraying water based emulsions that do not require heat, such as RS-1 or SS-1. Multiple sizes available including a portable unit without a material tank to pump material directly from a drum.
Features
- All units are manufactured with 10 GA steel and exceed all competitive products.
- A 5hp engine and 10 GPM pumping system are standard on all models.
- 5’ spray wand with 50’ high pressure material hose mounted on a heavy-duty hose reel.
- 10” vented flip-top filler lids are essential for fast material fill ups.
- Large 10 gallon solvent flushing tank for easy clean-out.
- 1” drain valve installed on the bottom of material tanks for maintenance.
VISIT MARATHONEQUIPMENTINC.COM PHONE: 1-888-999-4041 EMAIL: [email protected]
SPECIFICATIONS
*For larger capacity oil jacketed melting kettles, please see our UCMK/KERA models*
SPECIFICATIONS
TOOLS & ACCESSORIES
Above is an example of a small test patch of pavement that had dipped from a transport truck tire. Once all six infrared tubes were switched on (360,000 BTU), the asphalt was almost to original mixing temperature within 3-4 minutes and ready to be raked and tampered. (*heat up time may vary depending on ambient temperatures).
SPECIFICATIONS
OIL-JACKETED FEATURES
Our equipment has a reputation for outlasting the competition! Oil jacketed
units have a longer
lifespan in comparison to air jacketed versions as the oil absorbs the heat
generated by the
burner and the flame no longer acts as the heat source for the asphalt,
saving the lifespan of
the steel.
Oil jacketed units produce even heat distribution throughout the whole
hopper so that asphalt
doesn’t burn or soften unevenly throughout. Our design has superior heat
retention and comes
standard with automatic temperature control to consistently maintain the
quality of your product
and eliminate the need for frequent burner on/off control.
Oil jacketed models feature a 120V overnight heater to keep asphalt warm
overnight to minimize
heat up time the next day.
HYDRAULIC DUMP FEATURES
42° hydraulic dumping angle plus the 10° provided by the floor
guarantees maximum material output. Dual safety lock-out bars will
support vat at 20° for maintenance.
Hydraulic scissor hoist for superior stability when dumping asphalt.
Fully enclosed hydraulic powerpack with a single magnetic & detachable
operator pendant to allow hopper control from desired location.
Alarm sounds whenever tilt system is operated downwards for operator
safety.
OPTIONS
We manufacture many different sizes and shapes of mastic smoothers and drag boxes, for all your mastic needs!
VISIT MARATHONEQUIPMENTINC.COM PHONE: 1-888-999-4041 EMAIL: [email protected]
OPTIONS
- Hydraulic surge brakes
- 2-5/16” ball hitch
- Spare tire and rim mounted
- Amber strobe light
- Flashing LED arrow stick advisor
- LED work lights
- Heated rear chute
- Various size application smoothers, scrapers and squeegees
- 12 gallon mastic dispenser
- Adjustable drag box up to 4’
VISIT MARATHONEQUIPMENTINC.COM PHONE: 1-888-999-4041 EMAIL: [email protected]
OPTIONS
- Heated square shoveling platform
- 2-5/16” ball hitch
- Spare tire and rim mounted
- Amber strobe light
- LED work lights
- Flashing LED arrow stick advisor
- Various size application smoothers, scrapers and squeegees
12 gal Mastic Applicator (MD12)
VISIT MARATHONEQUIPMENTINC.COM PHONE: 1-888-999-4041 EMAIL: [email protected]
TACK COAT MATERIALS
The main purposes of tack coating is to promote the bond between new and old
pavement layers. Proper application is critical for success in pavements. The better
you understand the materials, the better they can be used for their intended
purpose.
There are many types of tack coat emulsions. The most common options are:
Slow Setting Emulsions – Designed for mixing stability, this type of emulsion is used with fine aggregates as the surface area is large and requires time for uniform mixing.
- SS-1 – Slow Setting Emulsion, low viscosity, stored at cooler temperatures
- SS-1h – Slow Setting Emulsion, low viscosity, stored at cooler temperatures, hard penetration
Rapid Setting Emulsions – Designed to react quickly with aggregate, the emulsion breaks down rapidly as it comes with contact with aggregate helping in fast setting and rapid curing. Rapid setting type of emulsion are typically used in surface of roads.
- RS-1 – Rapid Setting Emulsion, low viscosity, stored at cooler temperatures
- RS-1h – Rapid Setting Emulsion, low viscosity, stored at cooler temperatures, hard penetration
*Always consult your material manufacturer for their recommended storage & application temperatures to ensure you are purchasing the correct piece of equipment.
VISIT MARATHONEQUIPMENTINC.COM PHONE: 1-888-999-4041 EMAIL: [email protected]
CUTBACK EMULSIONS
The most popular types of cutback bitumen are well known as Rapid Curing (RC), Medium Curing (MC) and Slow Curing (SC). Rapid Curing cutback is designed to react quickly and are primarily used in spray applications such as bond/tack coats, aggregate chips seals, granular priming and similar surface treatments. Medium Curing cutback is designed to be mixed with aggregates because it does not break immediately upon contact with aggregate, and can remain workable for extended periods of time. Slow Curing cutback are used primarily in road-mixing and dust suppressant applications.
SUITABLE MATERIALS
This unit is suitable to melt hot poured rubberized asphalt joint sealants that must be heated using indirect heating methods, either a double boiler or hot oil circulating kettle. (always check with your local material supplier for safe heating and application temperatures).
We stock Maxwell Products’™ Elastoflex 410 and 650 DF crack and concrete joint selants, both in their exclusive, patented PolySkin™ meltable packaging which saves time on the job, eliminates the hassle of box cutters and cardboard waste, and delivers weatherproof storage. PolySkin’s quickly dissolving, polymer bead construction eliminates the messy clogs and tangles, common with the plastic liners and wrappers used in other meltable packaging solutions.
Products packaged in PolySkin go directly from the pallet into the melter. With no packaging to remove or paper waste to dispose of, workers spend less time handling material and more time applying it. No package to remove also means no knives required. Increase your crew’s safety, productivity, and efficiency with PolySkin!
*PolySkin and Maxwell Products are solely owned trademarks of Maxwell Products, Inc, all rights reserved.*
VISIT MARATHONEQUIPMENTINC.COM PHONE: 1-888-999-4041 EMAIL: [email protected]
OPTIONS
- 80 CFM Vanair Compressor with 40’ air hose
- Hot Air Lance installed with hoses
- Hydraulic surge braking system
- Amber strobe light
- Flashing LED arrow stick advisor
- LED work lights
- 2-5/16” ball hitch
- Spare tire and rim mounted
- Tool Box
KERA370BRE with optional 80 CFM Vanair Compressor
VISIT MARATHONEQUIPMENTINC.COM PHONE: 1-888-999-4041 EMAIL: [email protected]
OPTIONS
Wheel Kit
Our Marathon wheel kit is an excellent accessory to add to your Hot Air Lance. This kit provides easy maneuverability and helps to deflect flying debris.
Viper Gas Rotary Screw Air Compressor
Gas and Diesel Model Available
The Viper air compressor provides mobile power when and where you need it, with the flexibility of a gas-powered rotary screw air compressor. The Viper offers heavy-duty power, on or off your truck bed and gives you the flexibility only a transportable unit can offer.
VISIT MARATHONEQUIPMENTINC.COM PHONE: 1-888-999-4041 EMAIL: [email protected]

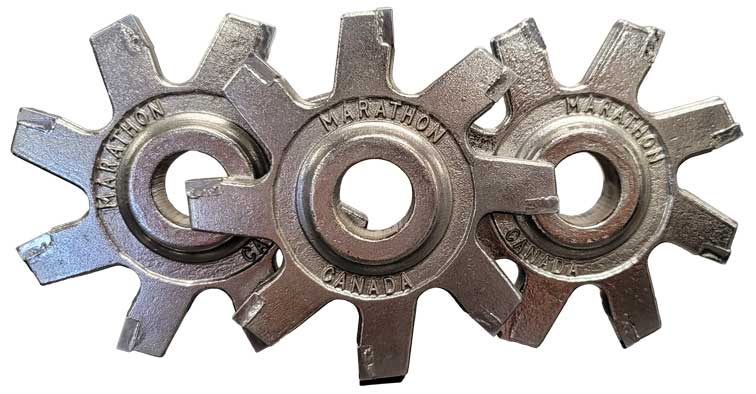

To learn more about our blades, visit our Website
