OIL-JACKETED MELTING KETTLES WITH
ELECTRICALLY HEATED HOSE SYSTEM AND
EXTERNAL PUMP SYSTEM
Marathon's KERA-EP models are designed for high production crack filling of hot poured rubberized crack sealant. Featuring a robust diesel burner system, electrically heated hose with light weight aluminum wand and an oil-jacketed externally mounted material pump, the KERA-EP delivery system is capable of heating, melting and applying any type of rubberized crack sealant with ease.
Features
- Manufactured with minimum 10 GA steel, fully welded and constructed of heavy duty 6” channel and gusseted in locations for safety and strength.
- Diesel powered burner & 23hp liquid cooled Kohler diesel engine for maximum efficiency!
- Diesel burner controlled by a Digital Automatic Temperature Control System that controls oil and sealant temperatures.
- Reverse loading anti-splash door(s) located curbside, for safe and easy loading of material.
- 120V 1,500W Overnight heater maintains heat to reduce daily start-up time.
- Recirculation port for quicker start-up and material recirculation.
- 3,000W Watt generator heats hose as well as providing convenient on-site 120 VAC power source.
- Fully insulated with ceramic fibre insulation to minimize heat loss.
- Operator alert horn system.
- On demand pumping system.
VISIT MARATHONEQUIPMENTINC.COM PHONE: 1-888-999-4041 EMAIL: [email protected]
SPECIFICATIONS
| Models | KERA180BRE-EP | KERA270BRE-EP | KERA370BRE-EP |
| Shipping Weight | 5,897 lbs (2,675 kg) | 6,978 lbs (3,165 kg) | 7,810 lbs (3,542 kg) |
| Engine | 23hp Liquid cooled, electric start, Kohler diesel | 23hp Liquid cooled, electric start, Kohler diesel | 23hp Liquid cooled, electric start, Kohler diesel |
| Burners | (1) 340,000 BTU diesel burner | (1) 340,000 BTU diesel burner | (1) 340,000 BTU diesel burner |
| Dimensions | |||
| Overall Length | 207 3/4” | 236" | 242" |
| Overall Width | 80" | 80" | 80" |
| Overall Height | 89" | 91" | 94" |
| Loading Height | 56" | 58" | 60" |
| Capacity | |||
| Material Vat | 180 gal (681 L) | 270 gal (870 L) | 370 gal (1,400 L) |
| Heat Transfer Oil | 38 gal (144 L) | 47 gal (180 L) | 53 gal (201 L) |
| Diesel Fuel Tank | 30 gal (113 L) | 30 gal (113 L) | 30 gal (113 L) |
| Hydraulic Oil Tank | 30 gal (113 L) | 30 gal (113 L) | 30 gal (113 L) |
| Suspension | |||
| Axle(s) | Tandem | Tandem | Tandem |
| Load Capacity | 10,400 lbs (4,717 kg) | 10,400 lbs (4,717 kg) | 14,000 lbs (6,350 kg) |
| Tires - Size | (4) 225/75/R15 | (4) 225/75/R15 | (4) 235/85/R16 |
*For larger capacity oil jacketed melting kettles, please see our UCMK/KERA models*
OPTIONS
- 80 CFM Vanair Compressor with 40' air hose
- Hot Air Lance installed with hoses
- Hydraulic surge braking system
- Amber strobe light
- Flashing LED arrow stick advisor
- LED work lights
- 2-5/16" ball hitch
- Spare tire and rim mounted
- Tool Box

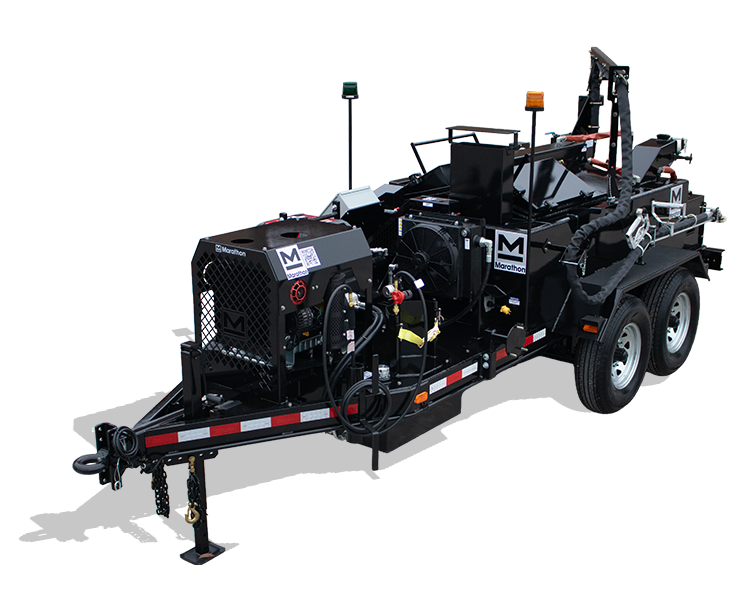

KERA370BRE with optional 80 CFM Vanair Compressor
