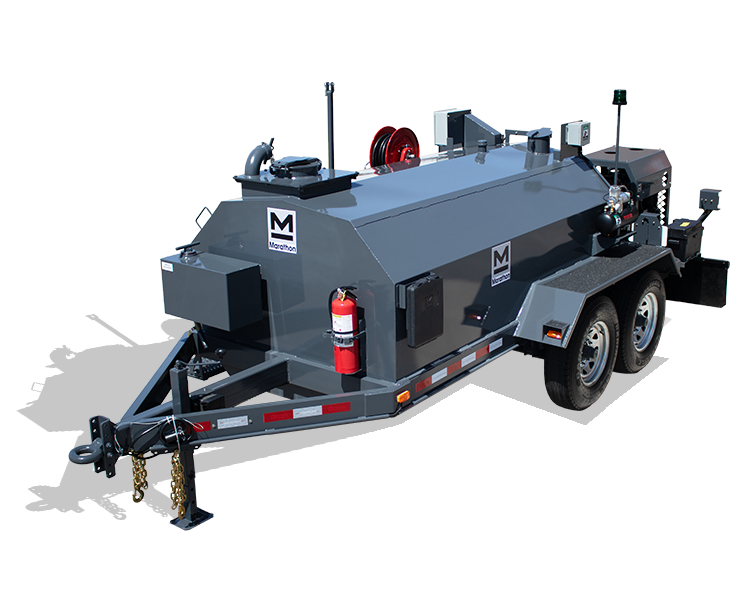

INSULATED TUBE FIRED HOT TACK DISTRIBUTORS
Available Sizes
Marathon's hot tack distributors provide fast and reliable means of heating and applying solvent based emulsions and will save time on road maintenance, airport work, parking lots, or wherever hot tack or other liquids must be applied. With many configurations and options available you can customize your equipment with the options that are tailored to your job requirements.
Features
- Fully insulated material vat with thick metal panels fully welded and constructed of heavy duty channel and gusseted in locations for safety and strength.
- 8' spraybar with air operated ball valve, wireless cab control and operator platform.
- Large 10” filler lid with 20” manhole provides easy access to material vat.
- All units come with a hydraulic pumping system, forward and reverse with 11hp electric start engine and 60 GPM pump.
- 5' spray wand and 50' hose come mounted on a heavy duty hose reel
VISIT MARATHONEQUIPMENTINC.COM PHONE: 1-888-999-4041 EMAIL: [email protected]
SPECIFICATIONS
| Models | LD600PT | LD1000PT | |
| Shipping Weight | 3,815 lbs (1,730 kg) | 5,677 lbs (2,575 kg) | |
| Tank Capacity | 600 gal (2,271 L) | 1,000 gal (3,780 L) | |
| Engine | 11hp Honda | 11hp Honda | |
| Pump | 60 GPM | 60 GPM | |
| Burners | (1) 410,000 BTU vapour propane | (1) 410,000 BTU vapour propane | |
| Dimensions | |||
| Overall Length | 195" | 212" | |
| Overall Width | 92" | 92" | |
| Overall Height | 58" | 70" | |
| Loading Height | 51" | 67" | |
| Suspension | |||
| Axle(s) | Tandem | Tandem | |
| Load Capacity | 10,400 lbs (4,717 kg) | 14,000 lbs (6,364 kg) | |
| Tires - Size | (4) 225/75/R15 | (4) 235/75/R16 | |
*For larger capacity oil jacketed melting kettles, please see our UCMK/KERA models*
OPTIONS
- Amber strobe light
- Flashing LED arrow stick advisor
- Tool Box
- Hydraulic surge brakes
- 300,000 BTU vapour propane torch with 15'hose
- Spare tire and rim mounted
- Two 2 ft. Spray Bar Extensions with camlocks
- Additional Propane Holder
