MASTIC DISPENSER
Marathon's mastic dispenser is a self contained heated applicator designed to keep material at an effective temperature, to apply mastic. Larger capacity material vat than any other manufacturer and built with heavy duty steel construction made to last!
Features
- Infrared heating tubes provide fast, well distributed heat to reduce hot spots and material degradation.
- Gate control located at the handle so operator can control material flow while applying mastic.
- Sloped inner material vat channels material towards chute opening.
- Large 6” chute opening dispenses mastic into a heavy duty 8” steel shoe.
- Fits underneath the discharge gate of all Marathon mastic machines.
VISIT MARATHONEQUIPMENTINC.COM PHONE: 1-888-999-4041 EMAIL: [email protected]
SPECIFICATIONS
| Model | MD12 | ||
| Shipping Weight | 168 lbs (76 kg) | ||
| Capacity | 12 gal | ||
| Burner | (1) 80,000 BTU vapour propane | ||
| Dimensions | |||
| Overall Length | 58" | ||
| Overall Width | 25" | ||
| Overall Height | 40" | ||
| Loading Height | 22" | ||
*For larger capacity oil jacketed melting kettles, please see our UCMK/KERA models*
OPTIONS

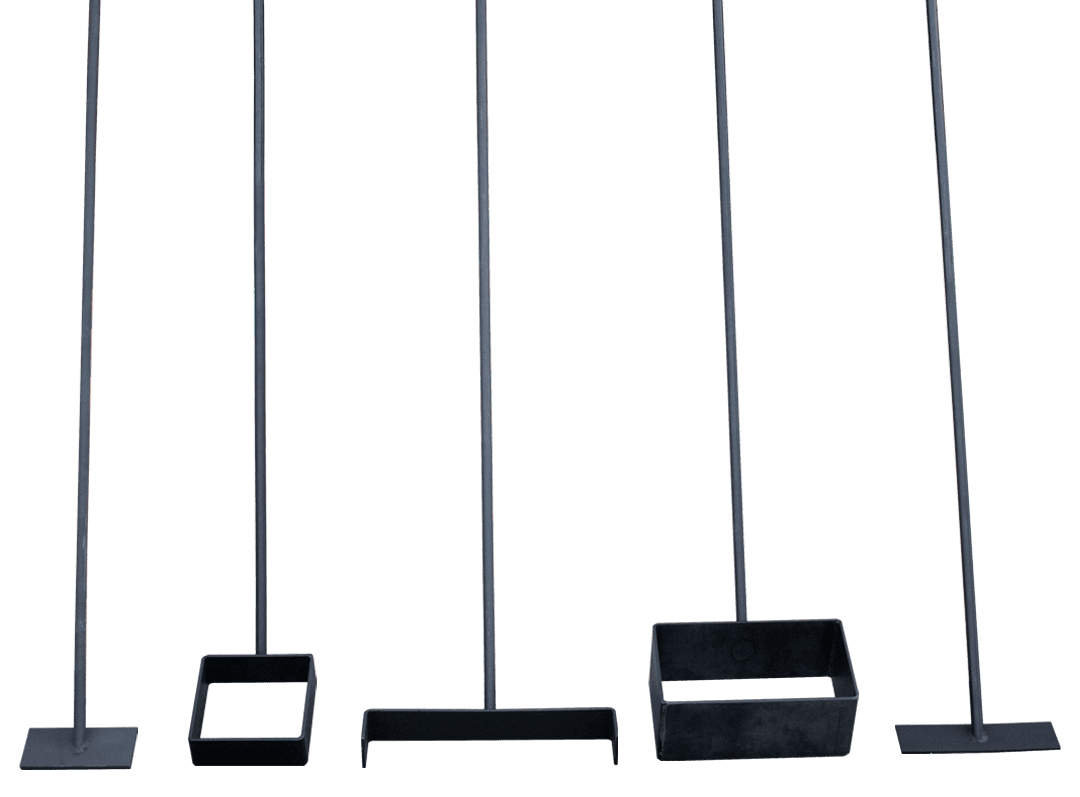

We manufacture many different sizes and shapes of mastic smoothers and drag boxes, for all your mastic needs!
