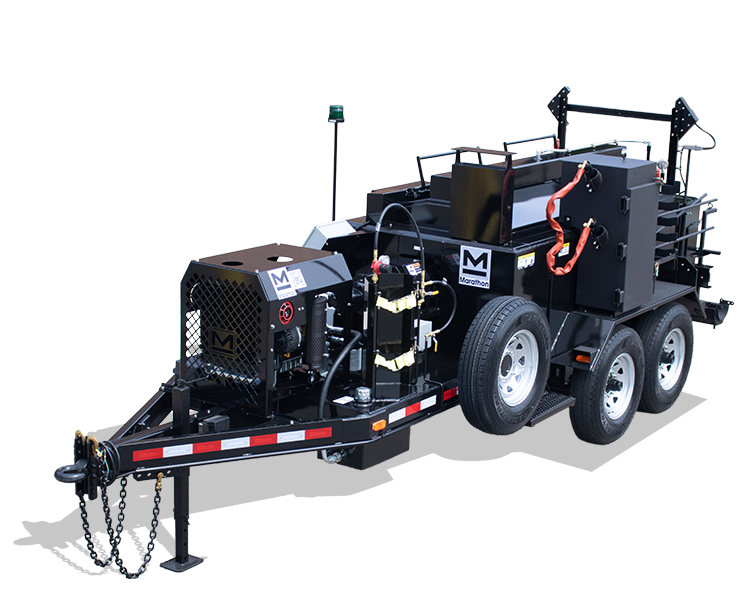

DIESEL FIRED MASTIC MIXERS
Available Sizes
Marathon is the leading manufacturer in the industry for engineering the best Mastic Mixers! Designed to mix mastic and bridge joint materials, the heavy duty construction allows mixing of heavy material mixed with aggregates. We offer more sizes and choices than anyone in the industry!
Features
- Manufactured with minimum 10 GA steel, fully welded and constructed of heavy duty 6” channel and gusseted in locations for safety and strength.
- Engineered efficient hot airflow means quicker heat up time and less consumption of fuel!
- Agitator has forward and rear drawing ability which blends the mastic materials better due to the ability to move mastic, not just lifting it from the bottom of the material vat as competitive units do.
- Easy access to burner, engine, fuel and hydraulic reservoirs for maintenance purposes.
- Overnight heaters keep material warm and reduce daily start-up time.
- Lower loading height of materials decreases operator fatigue and makes it safe and easy for operators to load material into the tank without having to step up on trailer.
- The heated delivery chute pivots from side to side (greater pouring radius) and chute keeps materials hot while flowing out of the unit for easy mastic applications.
- Tool heater is generous enough to get larger application tools in and out.
VISIT MARATHONEQUIPMENTINC.COM PHONE: 1-888-999-4041 EMAIL: [email protected]
SPECIFICATIONS
| Models | MM250DT | MM350DT | |
| Shipping Weight | 6,349 lbs (2,880 kg) | 7,007 lbs (3,178 kg) | |
| Engine | 23hp liquid cooled, electric start, Kohler diesel | 23hp liquid cooled, electric start, Kohler diesel | |
| Gearbox | HECO 16FF | HECO 30AF | |
| Chain Coupling | 10020 Roller chain with taper lock sprocket | 10020 Roller chain with taper lock sprocket | |
| Burners | (1) 340,000 BTU diesel burner | (1) 340,000 BTU diesel burner | |
| Dimensions | |||
| Overall Length | 208" | 236" | |
| Overall Width | 80" | 80" | |
| Overall Height | 77" | 79" | |
| Loading Height | 60" | 62" | |
| Delivery Chute Height | 24" | 27" | |
| Capacity | |||
| Material Vat | 250 gal (945 L) | 350 gal (1,324 L) | |
| Heat Transfer Oil | 45 gal (170 L) | 65 gal (246 L) | |
| Diesel Fuel Tank | 30 gal (113 L) | 30 gal (113 L) | |
| Hydraulic Oil Tank | 12 gal (46 L) | 12 gal (46 L) | |
| Suspension | |||
| Axle(s) | Tandem | Tandem | |
| Load Capacity | 10,400 lbs (4,717 kg) | 14,000 lbs (6,350 kg) | |
| Tires - Size | (4) 235/85/R16 | (4) 235/85/R16 | |
*For larger capacity oil jacketed melting kettles, please see our UCMK/KERA models*
OPTIONS
- Heated square shoveling platform
- 2-5/16” ball hitch
- Spare tire and rim mounted
- Amber strobe light
- LED work lights
- Flashing LED arrow stick advisor
- Various size application smoothers, scrapers and squeegees
12 gal Mastic Applicator (MD12)
