Marathon Equipment Inc

POWER ASPHALT SPRAYERS

Model

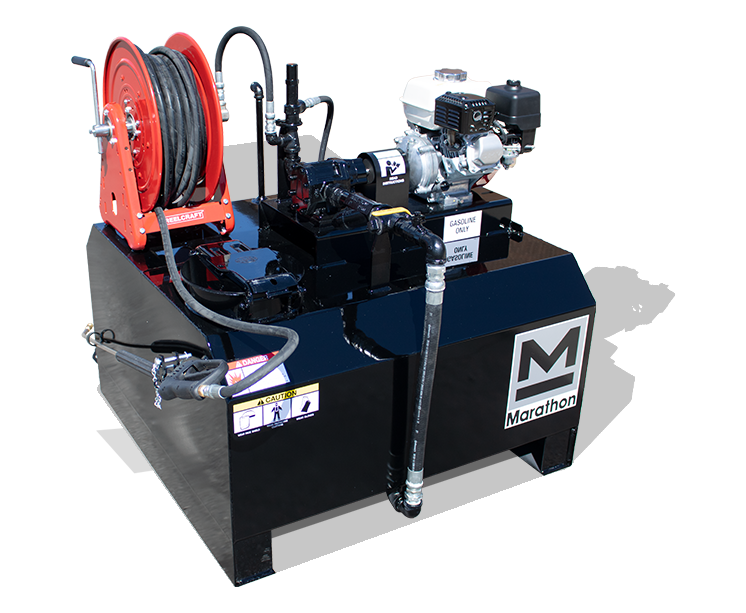

PAS115S Model Shown

Available Sizes

Marathon's asphalt sprayers are designed to spray solvent based sealers, asphalt cutback, gilsonite, foundation coatings and concrete primers. Multiple sizes available, including a portable unit without a material tank, to pump material directly from a drum.

Features

  • All units are manufactured with 10 GA steel and exceed all competitive products.
  • A 5hp engine and 10 GPM pumping system are standard on all models.
  • 5' spray wand with 100' high pressure material hose mounted on a heavy-duty hose reel.
  • 10” vented flip-top filler lids are essential for fast material fill ups.
  • 1” drain valve installed on the bottom of material tanks for maintenance.

VISIT MARATHONEQUIPMENTINC.COM PHONE: 1-888-999-4041 EMAIL: [email protected]

SPECIFICATIONS

*Specifications subject to change without notice
Models PPAS10 PAS70G PAS115S
Type Portable Skid Mount Skid Mount
Material Capacity N/A 70 gal (265 L) 115 gal (435 L)
Shipping Weight 150 lbs (68 kg) 336 lbs (152 kg) 450 lbs (204 kg)
Engine 5 HP 5 HP 5 HP
Pump Capacity 10 GPM 10 GPM 10 GPM
Dimensions
Overall Length 40" 47" 43"
Overall Width 24" 43" 45"
Overall Height 18" 19" 44"

*For larger capacity oil jacketed melting kettles, please see our UCMK/KERA models*

CUTBACK EMULSIONS

The most popular types of cutback bitumen are well known as Rapid Curing (RC), Medium Curing (MC) and Slow Curing (SC). Rapid Curing cutback is designed to react quickly and are primarily used in spray applications such as bond/tack coats, aggregate chips seals, granular priming and similar surface treatments. Medium Curing cutback is designed to be mixed with aggregates because it does not break immediately upon contact with aggregate, and can remain workable for extended periods of time. Slow Curing cutback are used primarily in road-mixing and dust suppressant applications.

POWER ASPHALT SPRAYERS

Available Sizes

Marathon's asphalt sprayers are designed to spray solvent based sealers, asphalt cutback, gilsonite, foundation coatings and concrete primers. Multiple sizes available, including a portable unit without a material tank, to pump material directly from a drum.

Features

  • All units are manufactured with 10 GA steel and exceed all competitive products.
  • A 5hp engine and 10 GPM pumping system are standard on all models.
  • 5' spray wand with 100' high pressure material hose mounted on a heavy-duty hose reel.
  • 10” vented flip-top filler lids are essential for fast material fill ups.
  • 1” drain valve installed on the bottom of material tanks for maintenance.

Specifications

*Specifications subject to change without notice
Models PPAS10 PAS70G PAS115S
Type Portable Skid Mount Skid Mount
Material Capacity N/A 70 gal (265 L) 115 gal (435 L)
Shipping Weight 150 lbs (68 kg) 336 lbs (152 kg) 450 lbs (204 kg)
Engine 5 HP 5 HP 5 HP
Pump Capacity 10 GPM 10 GPM 10 GPM
Dimensions
Overall Length 40" 47" 43"
Overall Width 24" 43" 45"
Overall Height 18" 19" 44"

Options

CUTBACK EMULSIONS

The most popular types of cutback bitumen are well known as Rapid Curing (RC), Medium Curing (MC) and Slow Curing (SC). Rapid Curing cutback is designed to react quickly and are primarily used in spray applications such as bond/tack coats, aggregate chips seals, granular priming and similar surface treatments. Medium Curing cutback is designed to be mixed with aggregates because it does not break immediately upon contact with aggregate, and can remain workable for extended periods of time. Slow Curing cutback are used primarily in road-mixing and dust suppressant applications.
