MM250ADT

Overview

BEST SELLER

MM250ADT

250 Gallons

|

Trailer

Marathon leads the way when it comes to Mastic Mixers! Engineered and built to be the best unit on the market for all types of mastic materials, our heavy duty construction even handles bridge joint material and all heavy aggregate material with ease. Multiple sizes and option choices are unmatched in the industry!

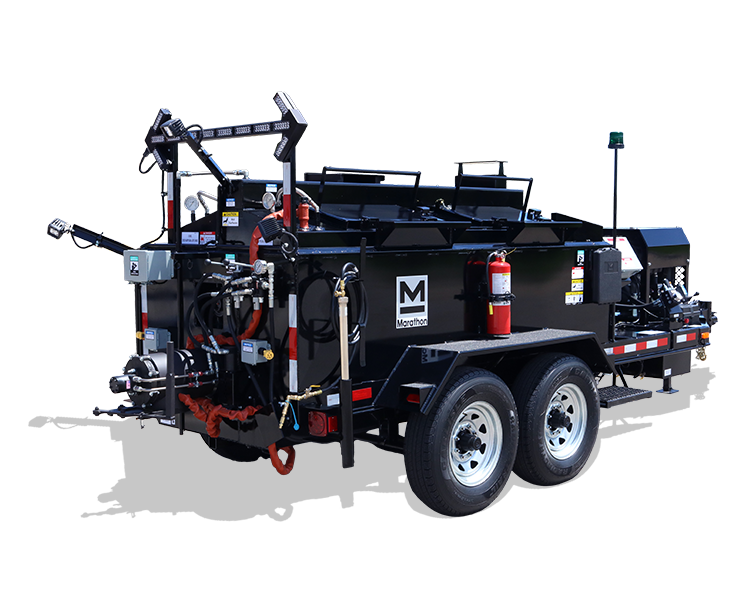

MM250DT 250 gallon mastic mixer - diesel auger drive trailer mount

*Custom Paint Colour

FEATURES

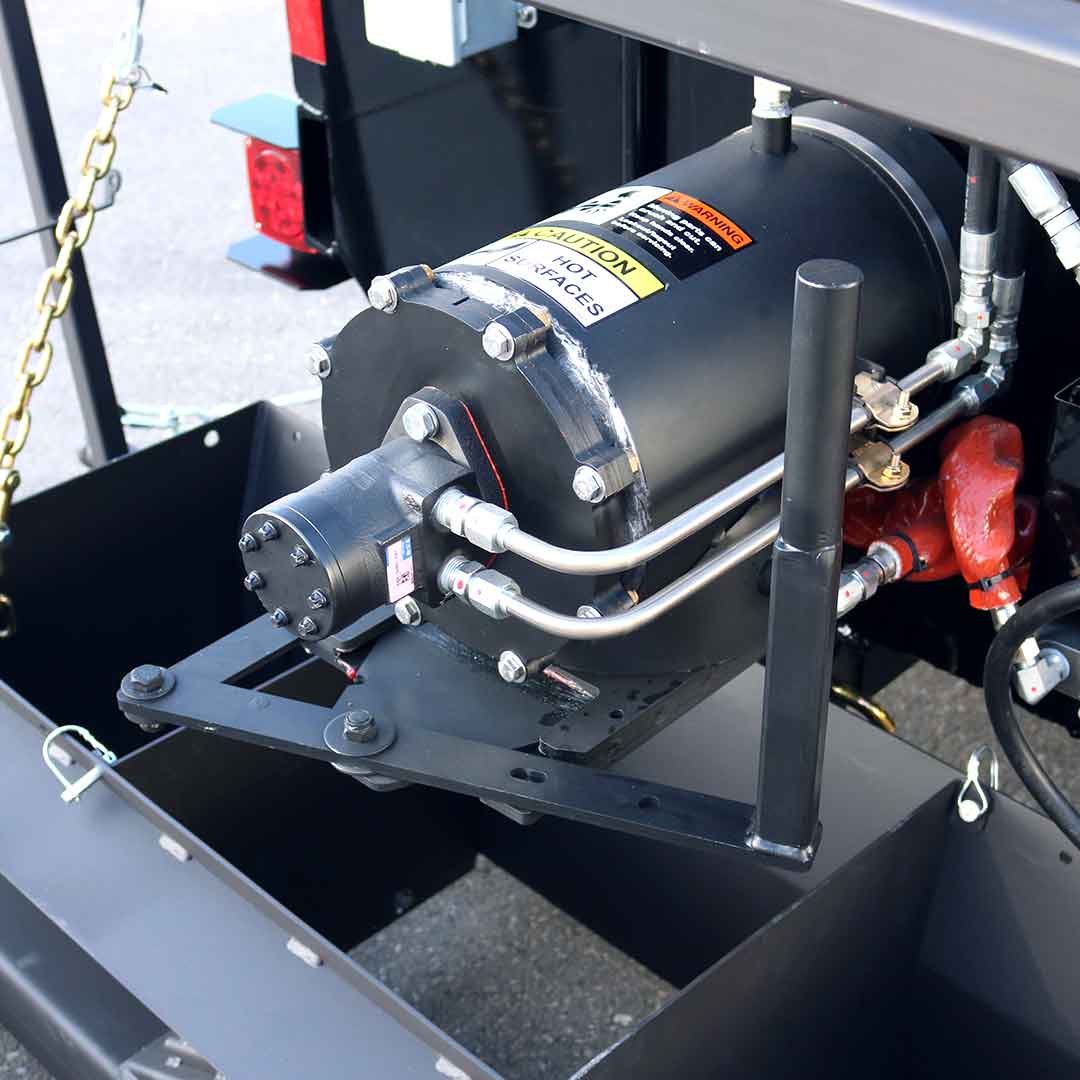

Hydraulic auger control

Auger with hydraulic controls.

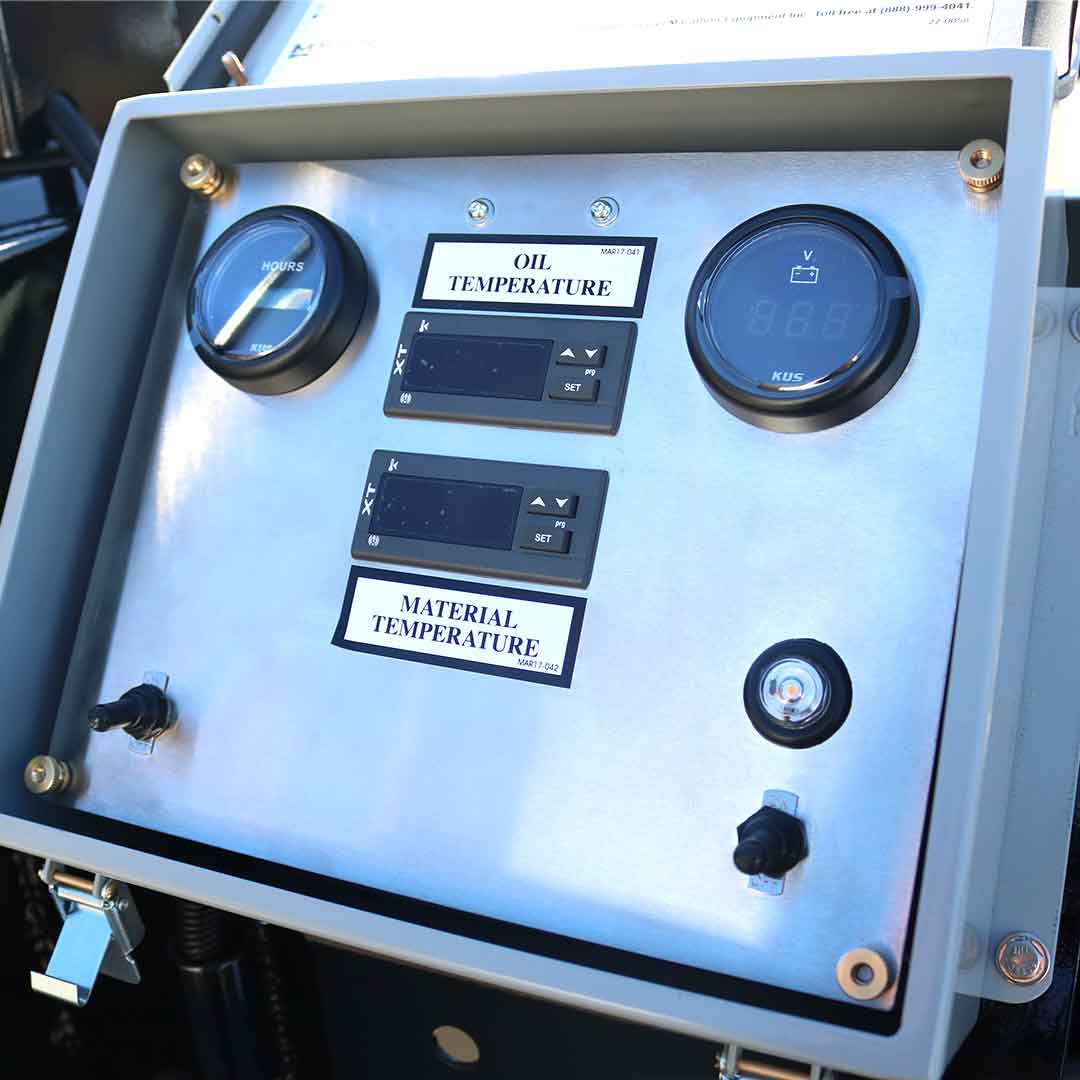

automatic temperature control with digital thermostat & dual digital controls

Automatic temperature control system with dual digital thermostat control.

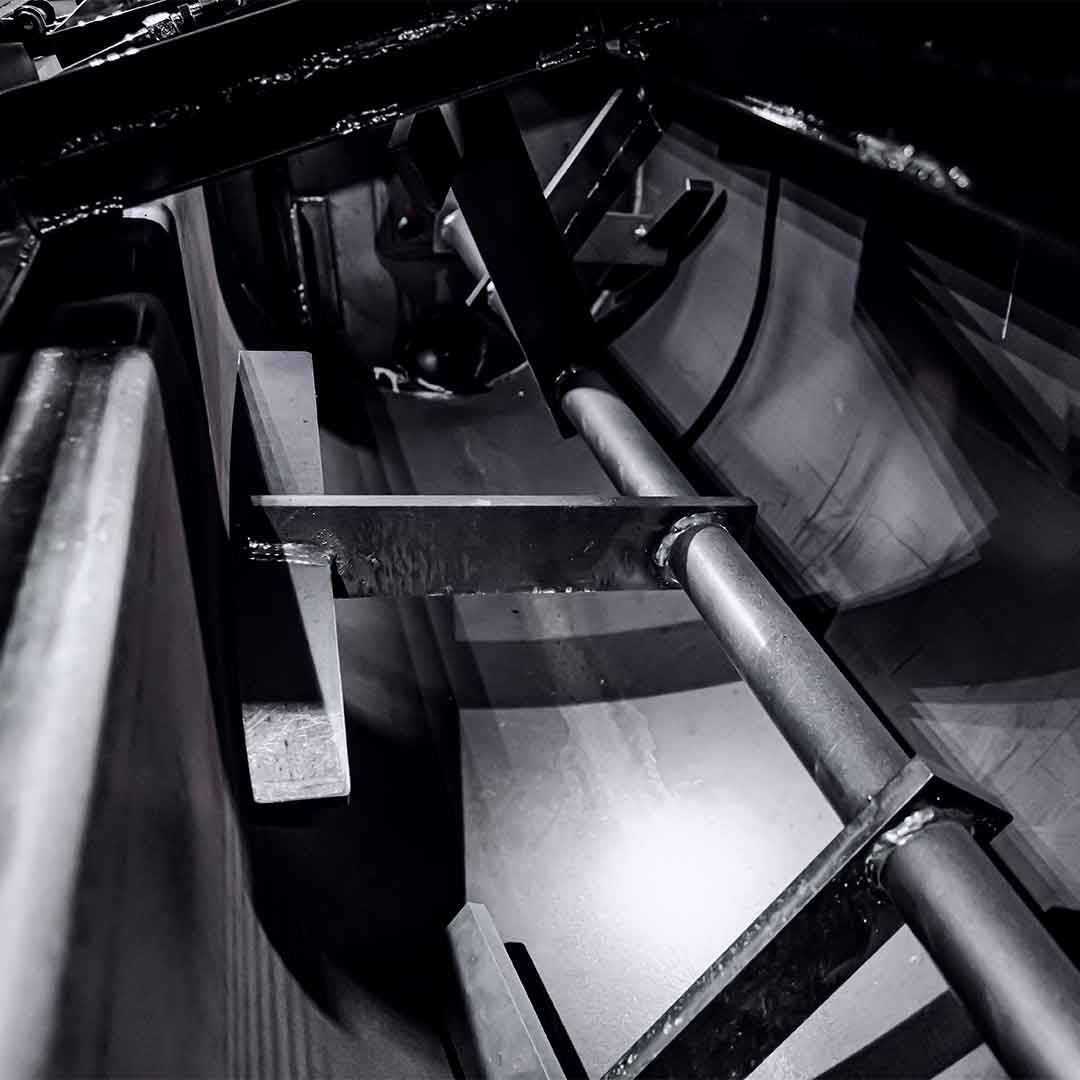

full sweep hydraulic agitation with micro switch to stop agitation when the lid is opened

Full sweep hydraulic agitation with micro switch to stop agitation when the lid is opened.

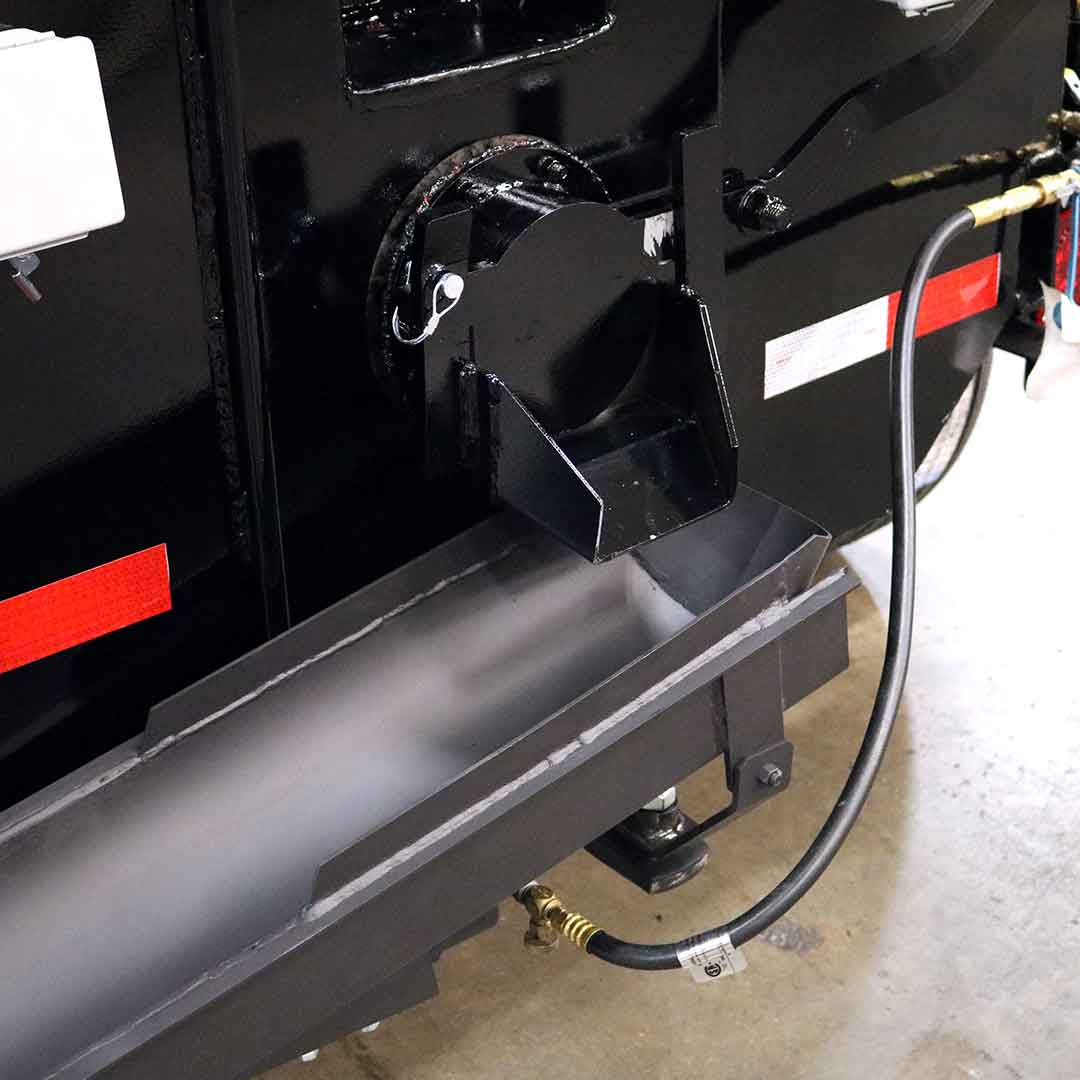

6 inches diameter opening with heated rear chute

6” rear dispensing gate with a heated chute.

Tool heater mounted on fender.

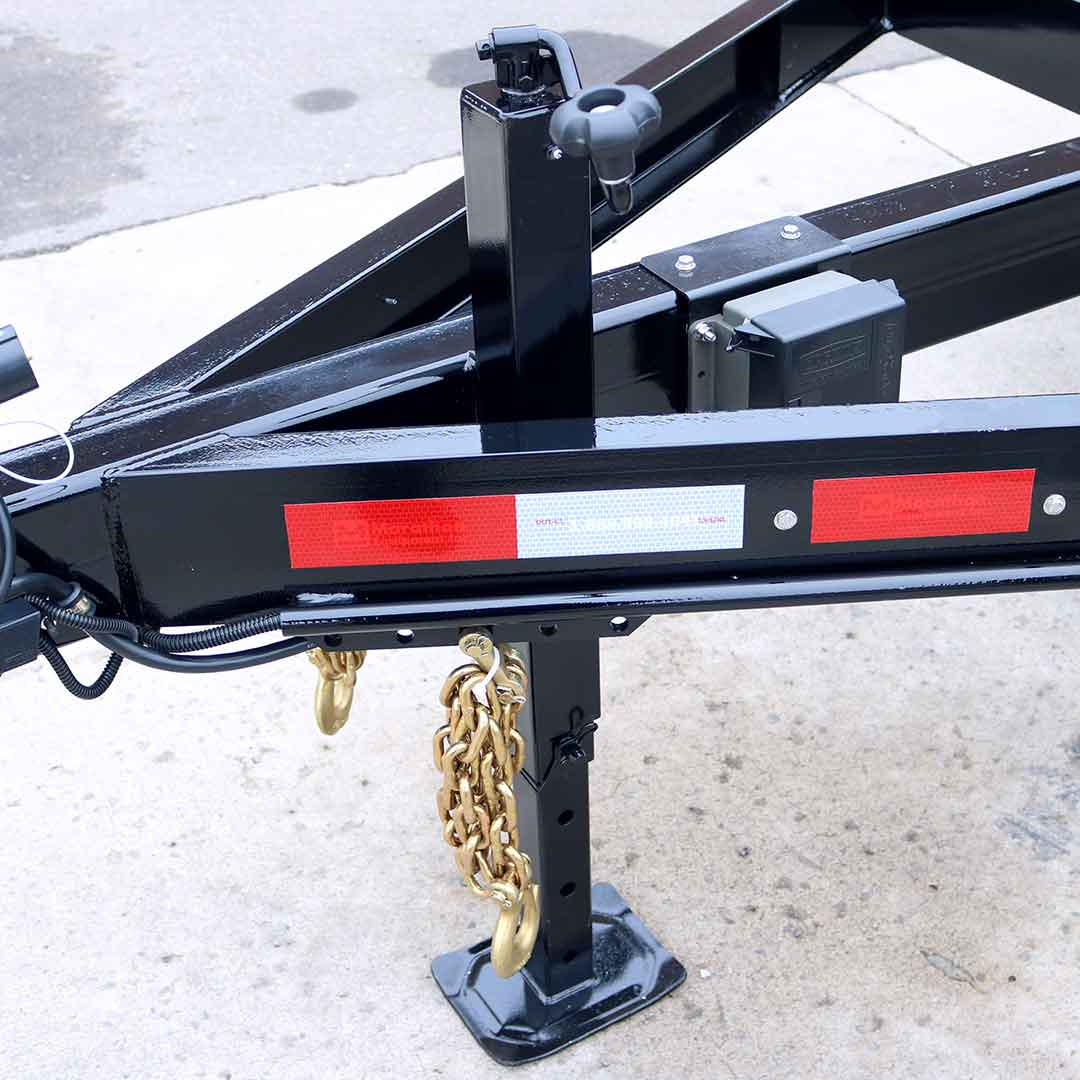

heavy duty, top wind trailer jack and adjustable pintle hitch

Heavy duty, top wind trailer jack and adjustable pintle hitch.

seven pin trailer plug

7-pin trailer plug.

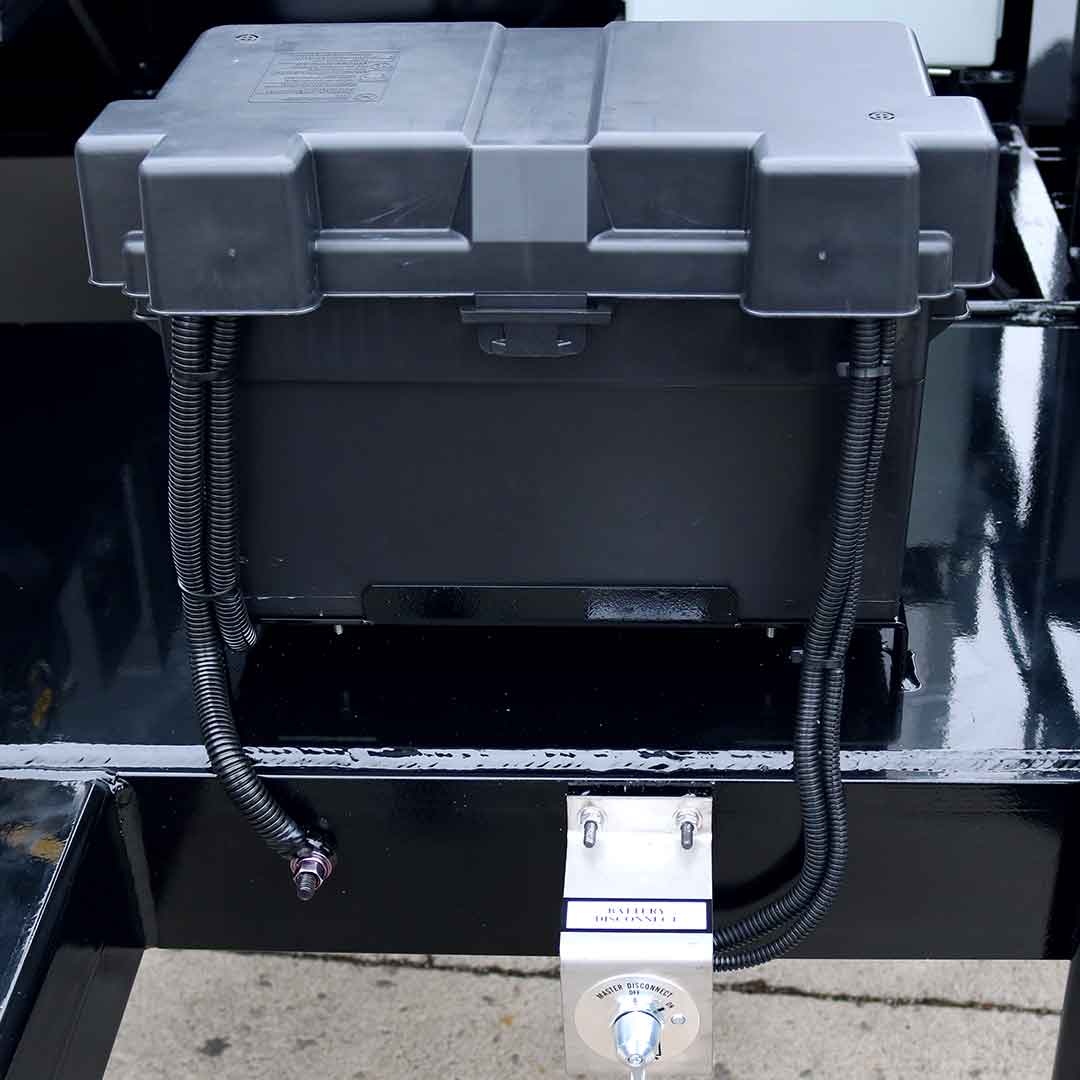

12 Volt DC battery in weatherproof box

12 volt DC battery in weatherproof box.

1500W overnight heating system

1500W overnight heating system.

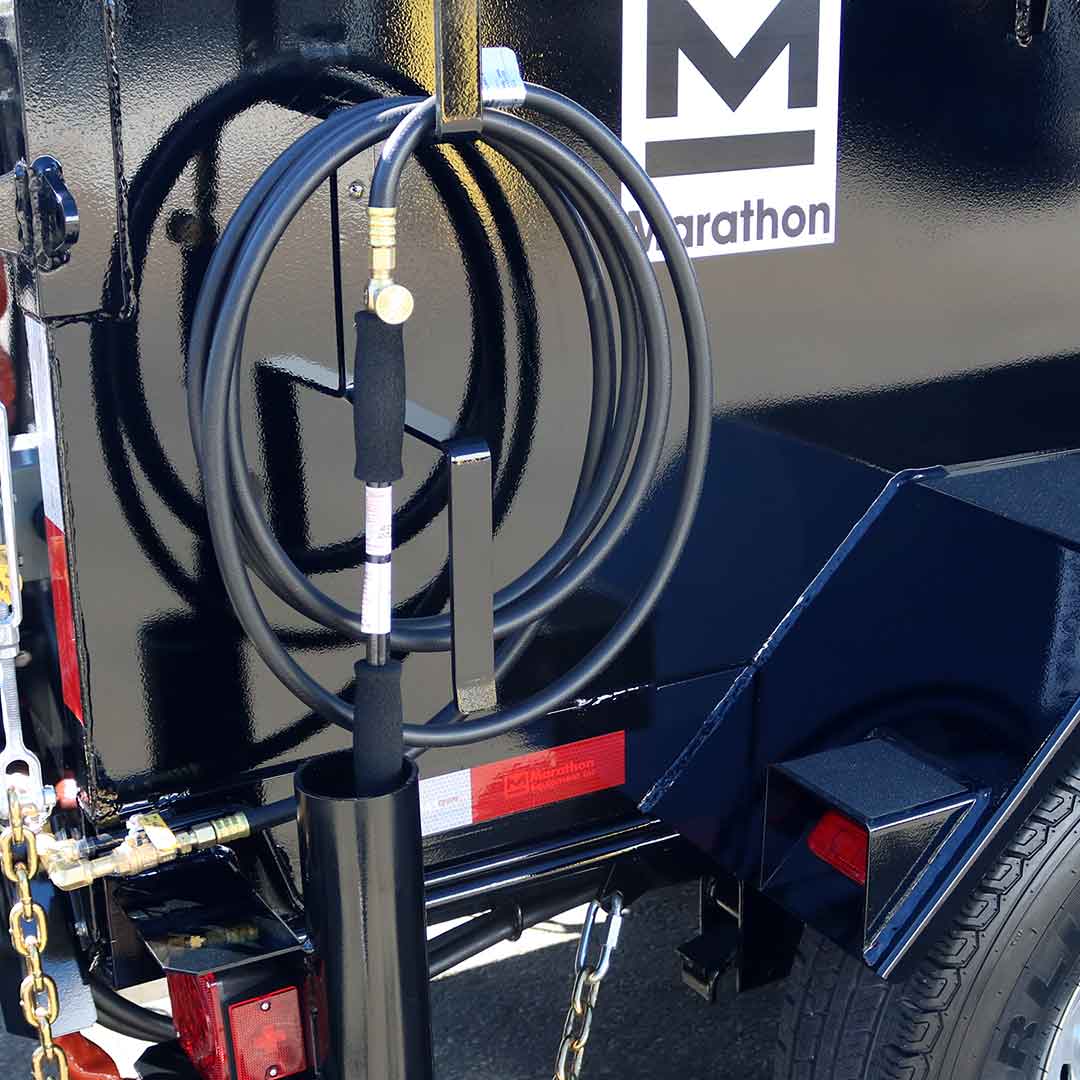

300,000 BTU vapour propane hand torch with fifteen feet propane hose

300,000 BTU vapour propane hand torch with 15' propane hose and included flint lighter.

undefined

23HP Liquid cooled, 3 cylinder, Kohler diesel engine with engine cover.

undefined

Single 340,000 BTU diesel burner.

department of transportation canada approved LED trailer lighting

DOT/Transport Canada approved LED trailer lighting.

license plate bracket with LED light

License plate bracket with LED light.

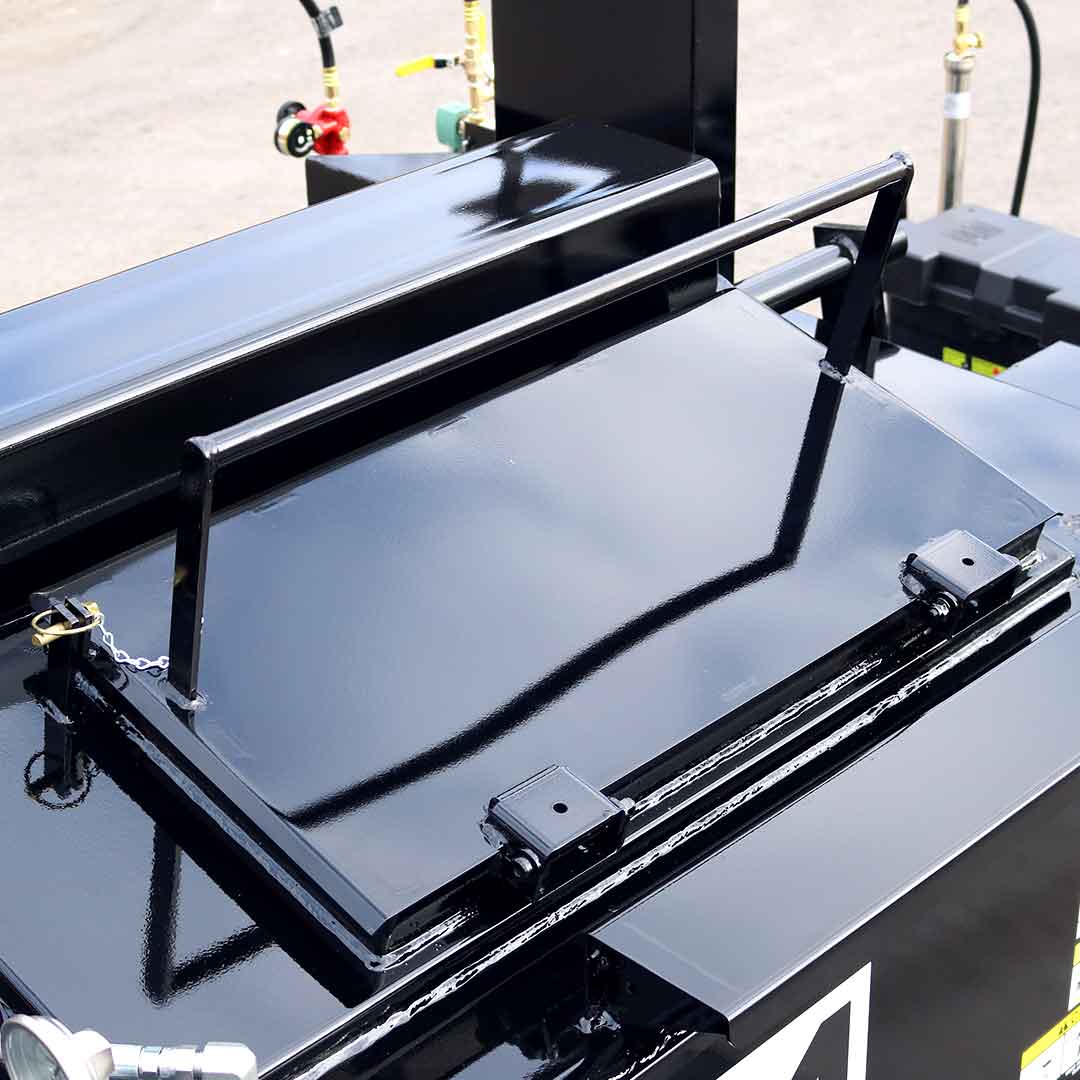

reverse anti-splash material loading door

Reverse loading anit-splash material loading door.

10lb fire extinguisher with bracket

10LB Fire extinguisher with bracket.

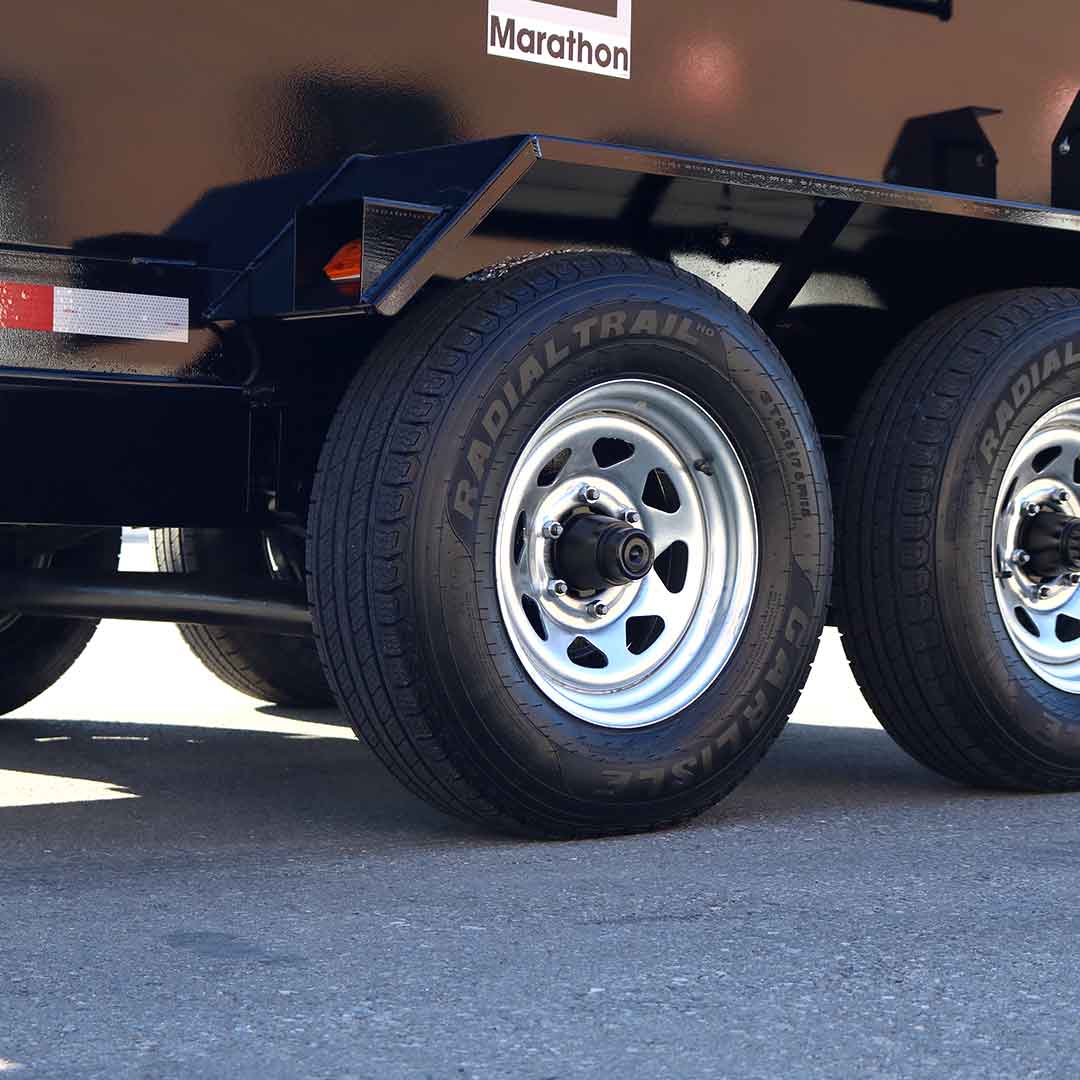

two 5,200 lb axles with 225/75/R15 tires, electric brakes and breakaway kit

(2) 5,200 lb axles with 225/75/R15 tires, electric brakes and breakaway kit.

Green Strobe Light

Green Strobe Light.

LIST OF ADD-ON OPTIONS

slow moving vehicle sign

Slow moving vehicle sign

amber strobe light

Amber strobe light

flashing LED arrow bar

Flashing LED arrow bar

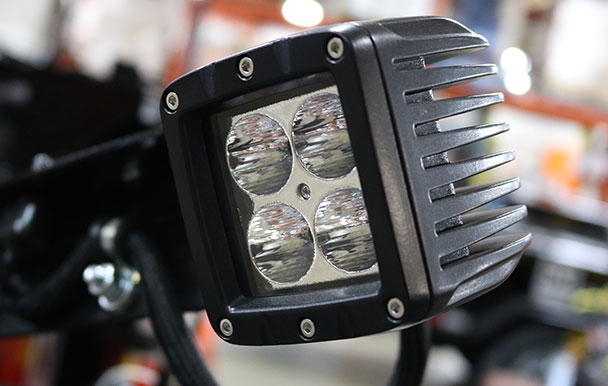

LED Work light installed

LED work light

2-5/16 inch ball hitch (replaces pintle hitch)

2-5/16" Ball hitch (replaces pintle hitch)

spare tire and rim mounted to trailer

Spare tire and rim mounted to trailer

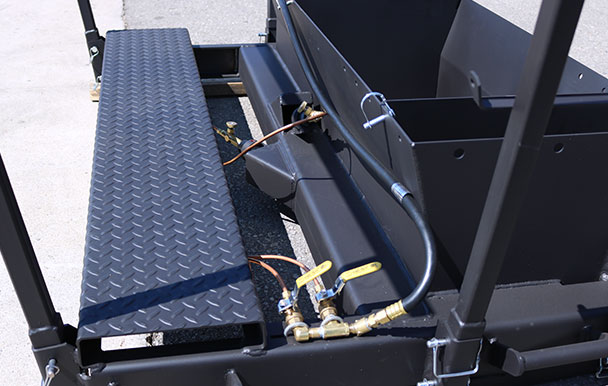

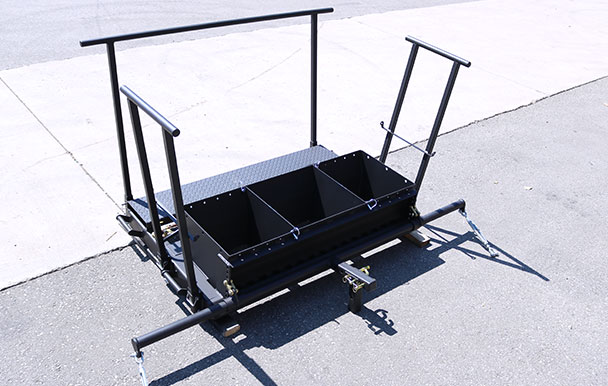

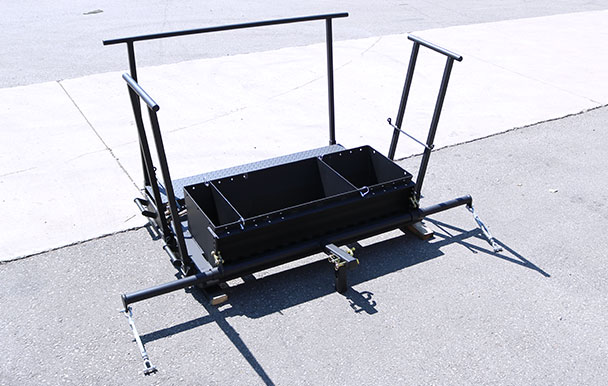

Dragbox with adjustable plates

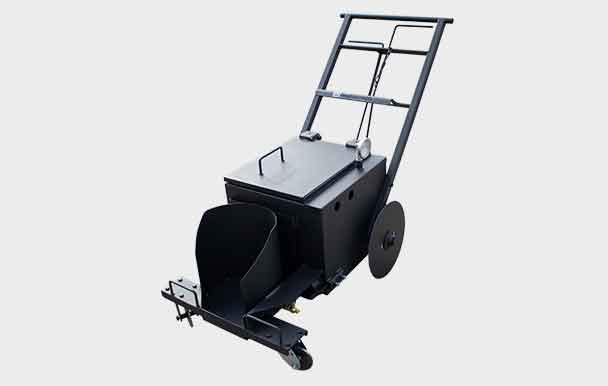

12 gallon Mastic Dispenser

12 gallon Mastic Dispenser

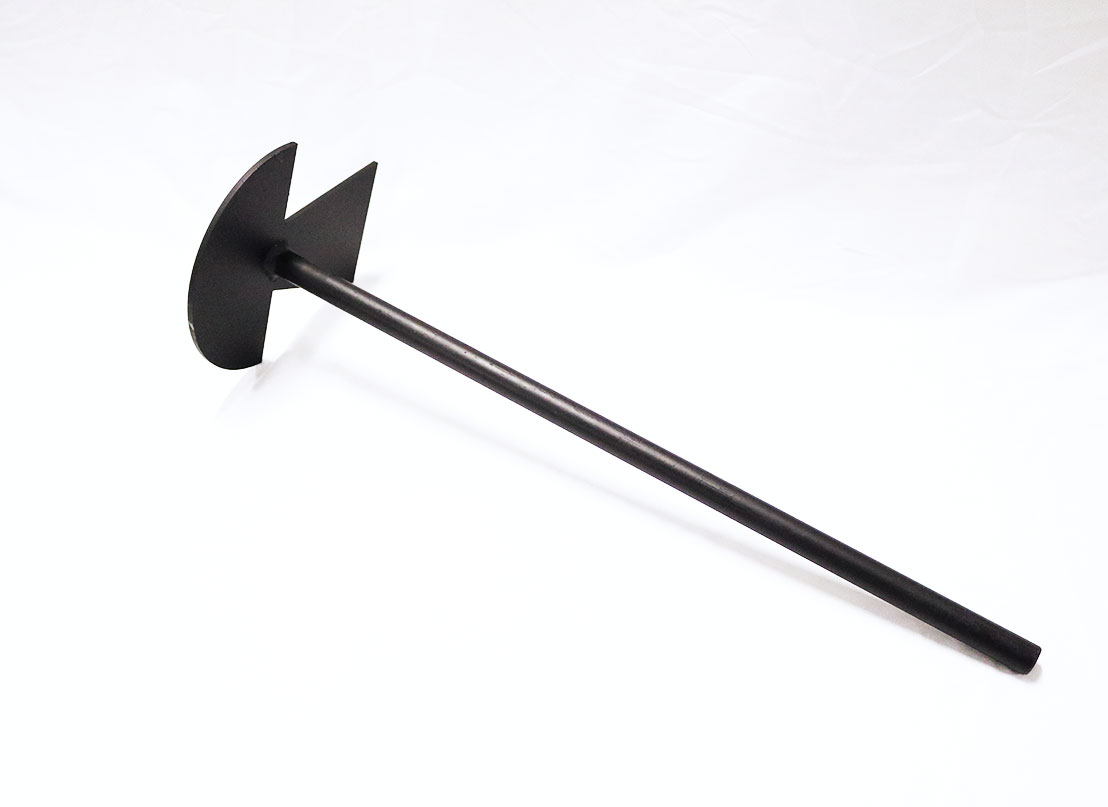

Short Handle Chute Scraper

07-0026

20" Handle Chute Scraper

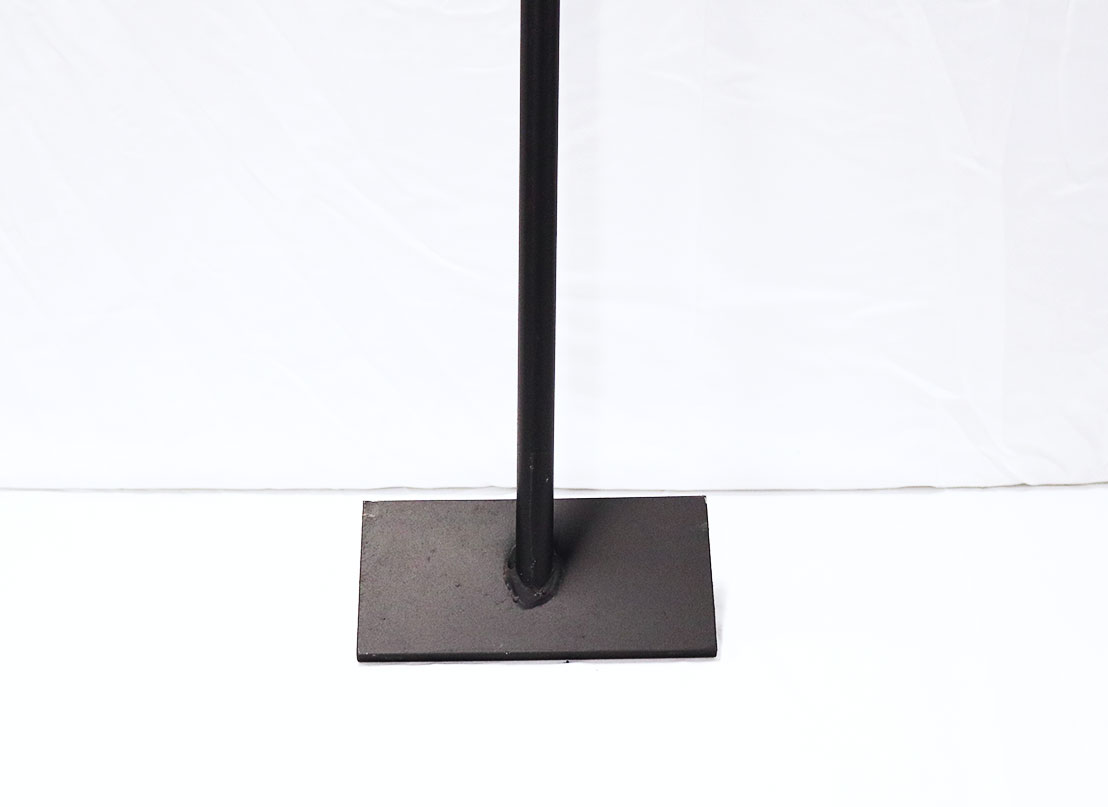

8

07-0018

8" by 4" Mastic Smoother
12

07-0020

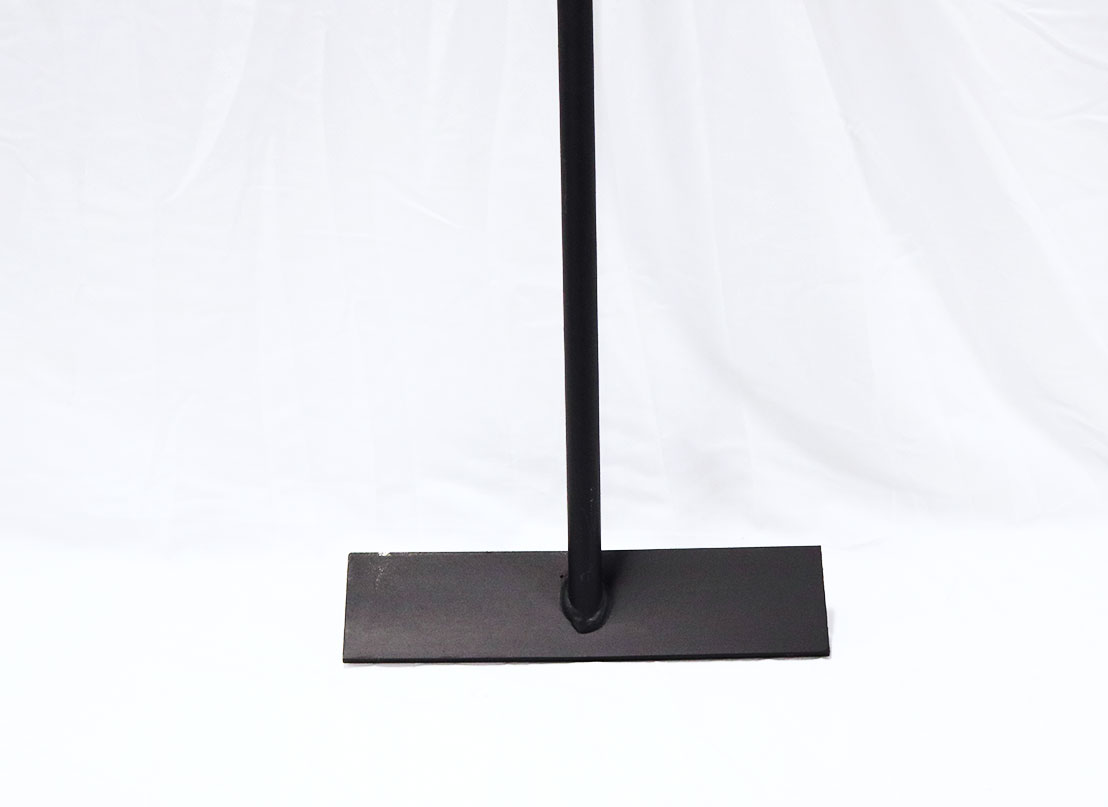

12" Flat Squeegee

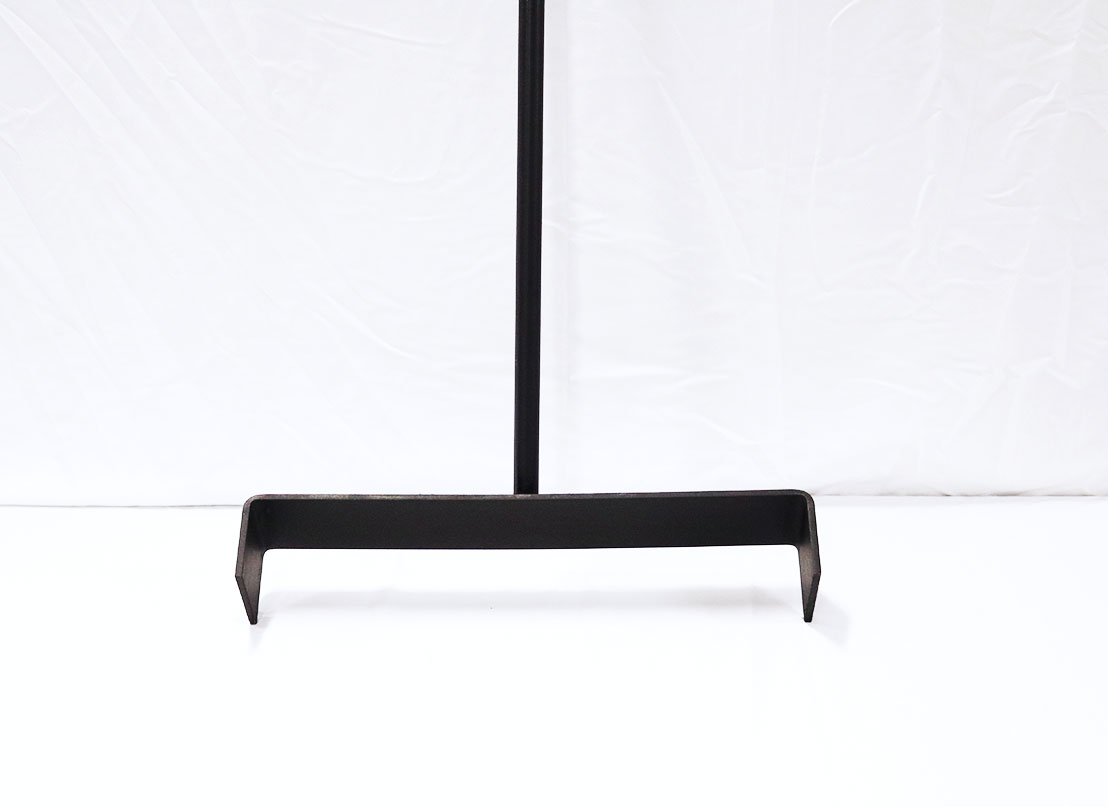

18

07-0025

18" U Squeegee
Vapour propane regulator

08-1150

Vapour Propane Regulator With Gauge

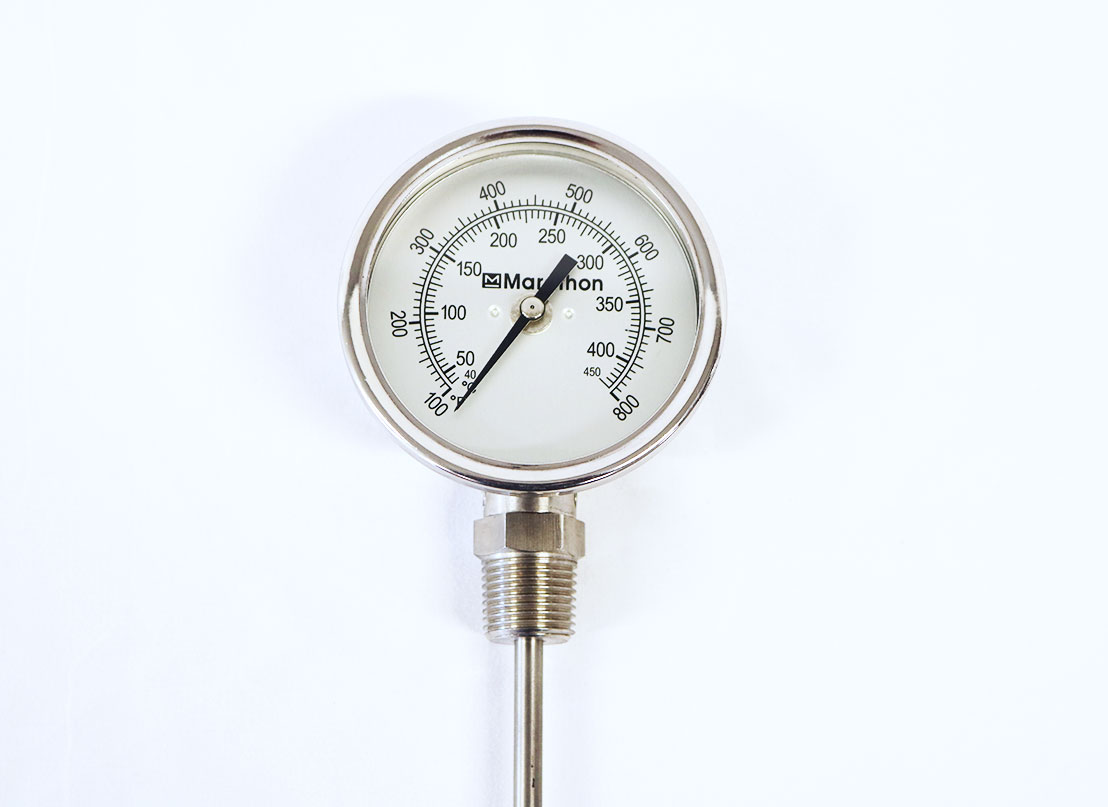

12 inch Oil thermometer that reads between 100 degree fahrenheit to 800 degree fahrenheit

04-0112

12" Oil Thermometer (100°F - 800°F)

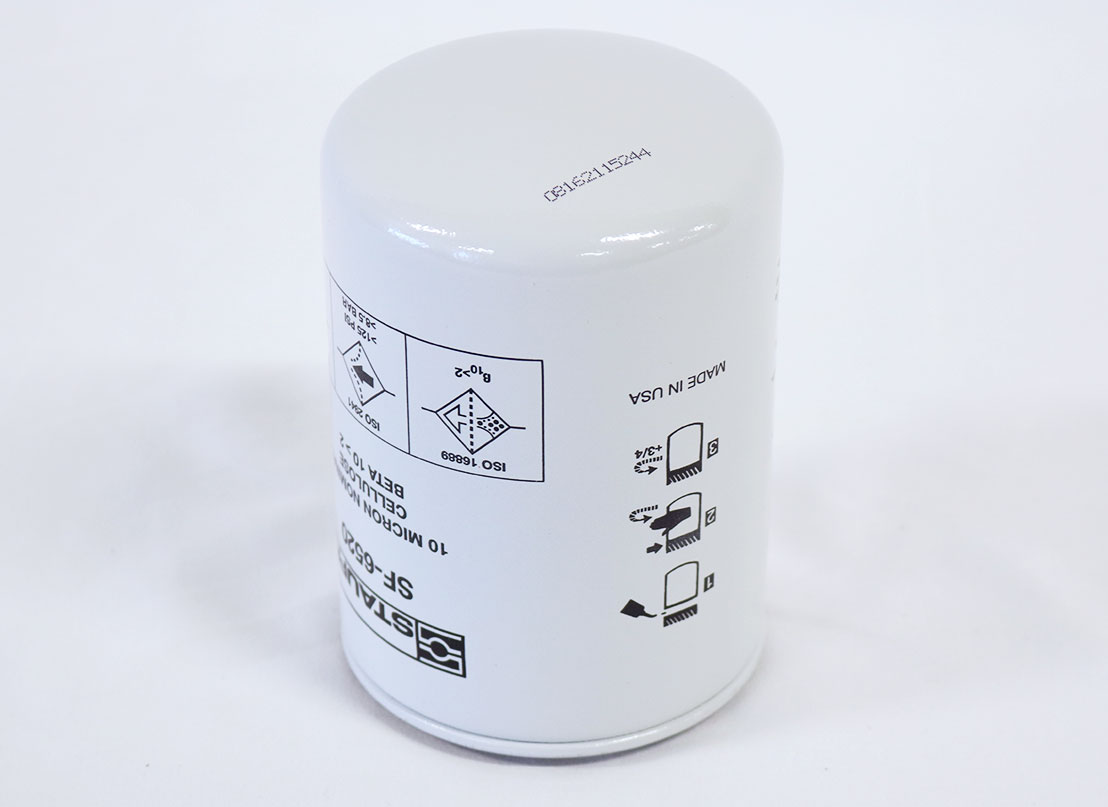

Hydraulic oil filter

17-0002

Hydraulic Oil Filter

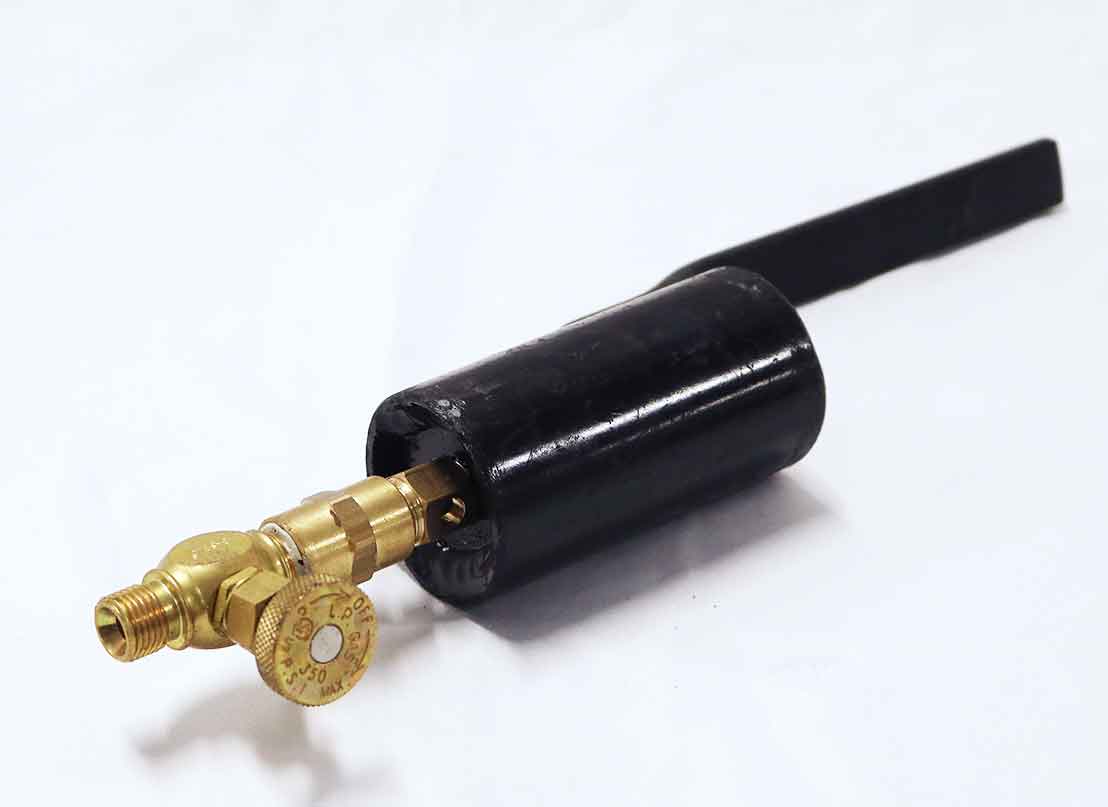

80,000 BTU Vapour propane burner with stand

08-1121

80,000 BTU Vapour Propane Burner w/Stand

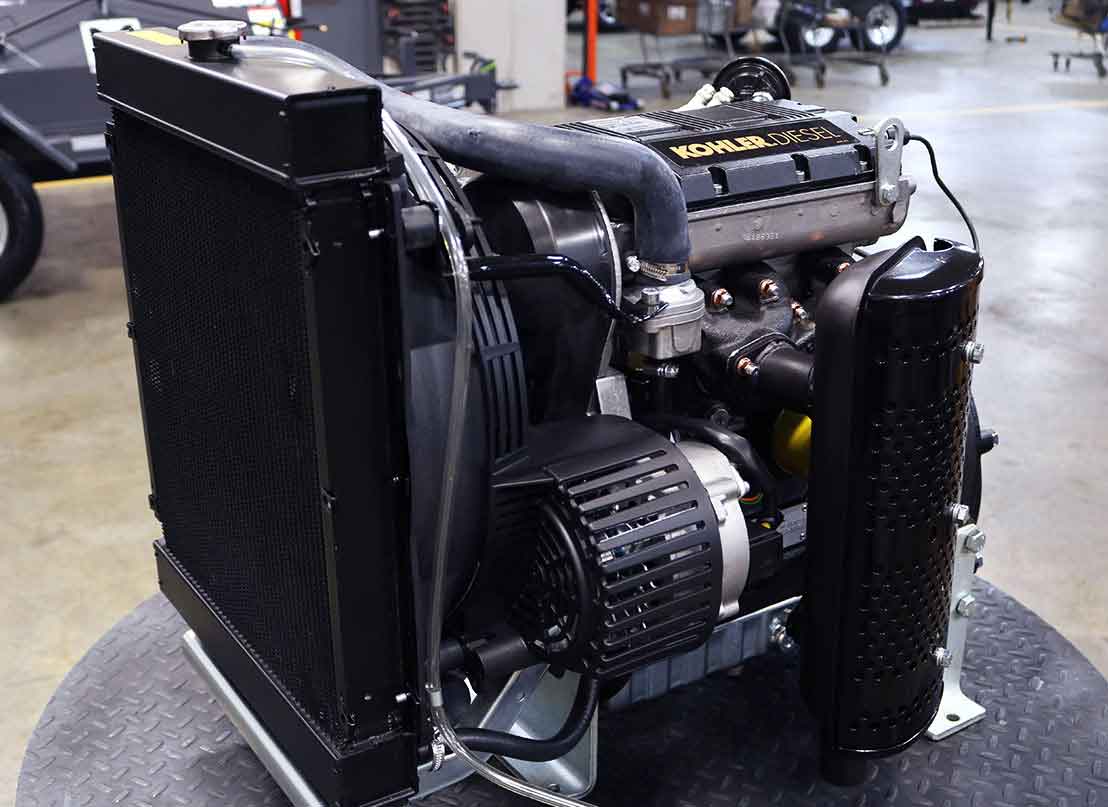

23.4 horsepower Kohler diesel engine

40-3100

23.4hp Kohler Diesel Engine
28 inch Material thermometer that reads between 50 degree fahrenheit to 550 degree fahrenheit

04-0228

28" Material Thermometer (50°F - 550°F)

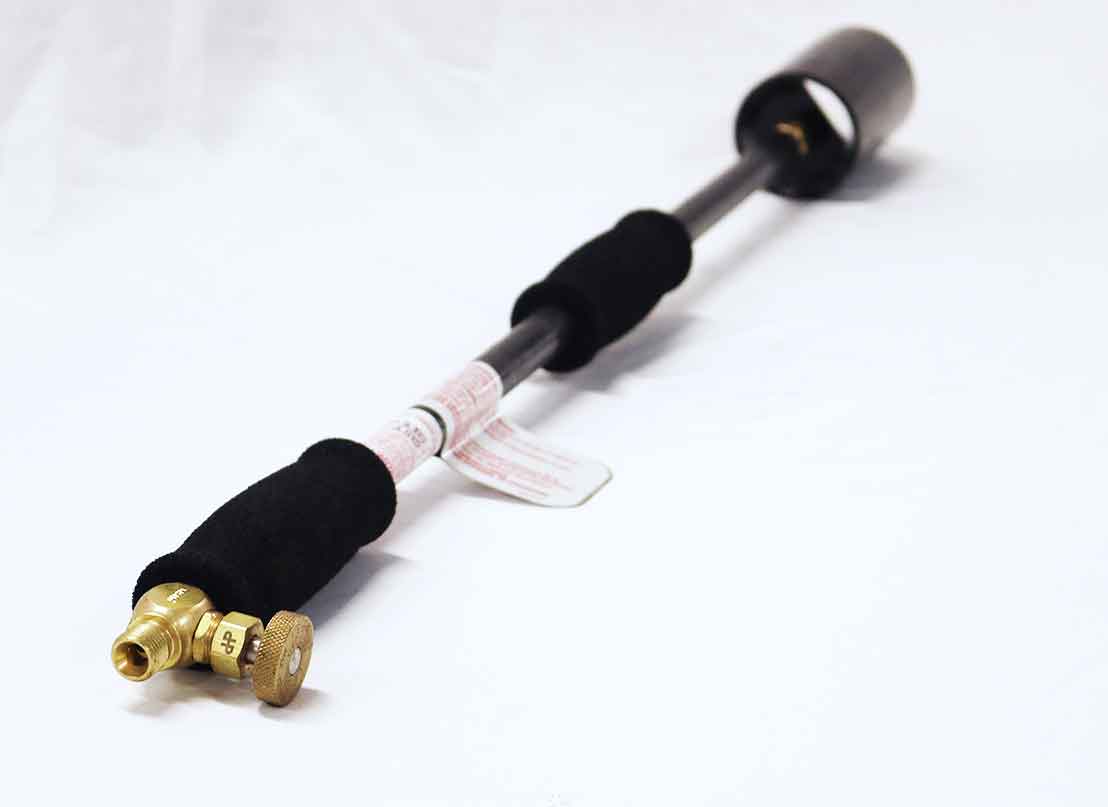

185,000 BTU Vapour propane hand torch

08-1014

185,000 BTU Vapour Propane Hand Torch

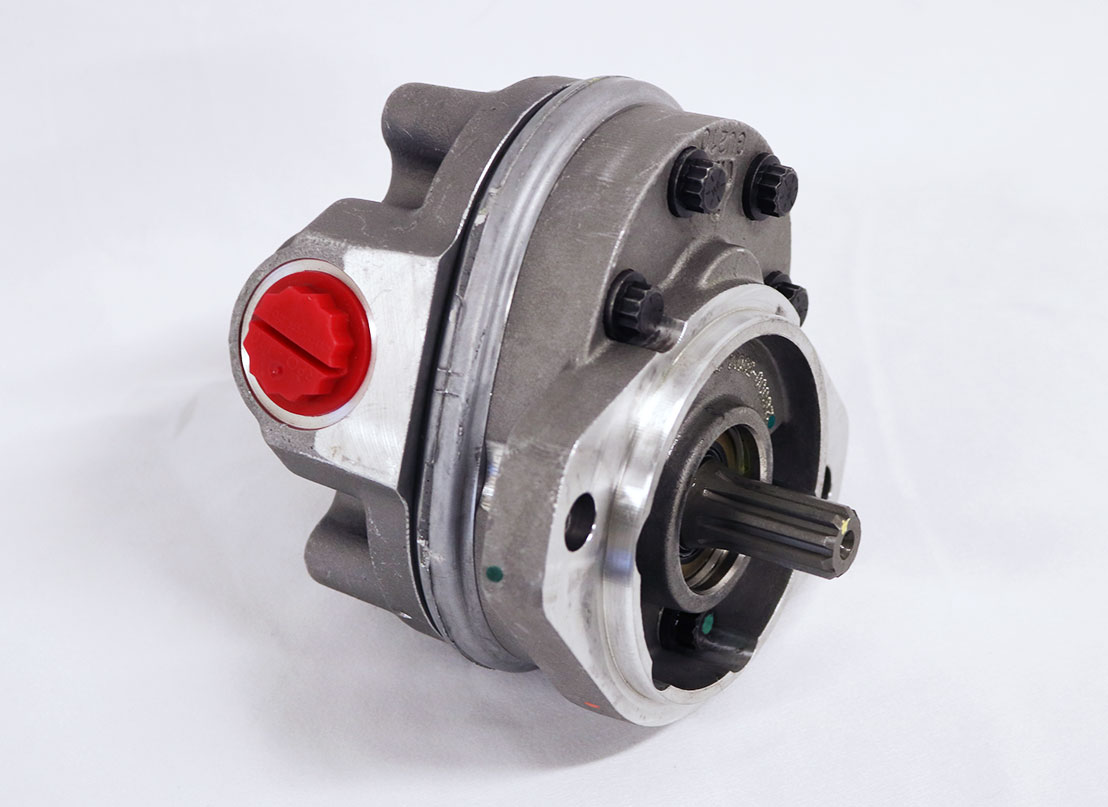

Eaton gear pump

17-0033

Eaton Gear Pump

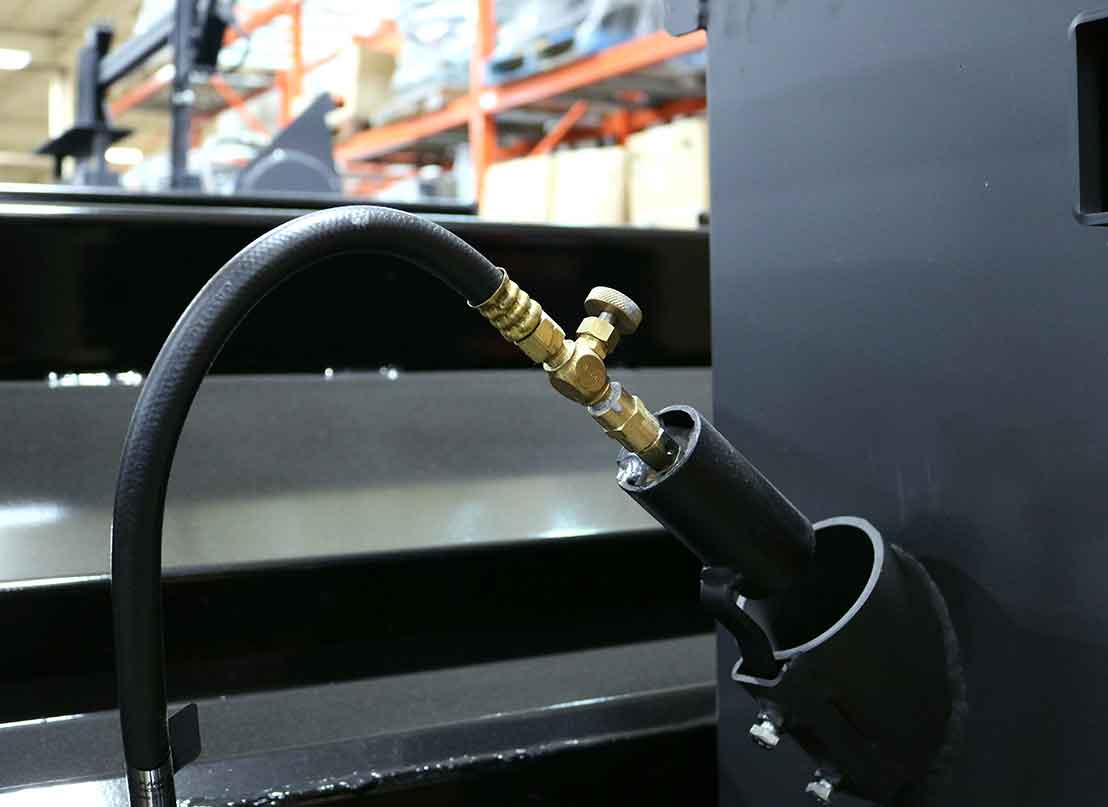

80,000 BTU Propane burner with bracket - tool heater

08-1201

80,000 BTU Propane Burner w/Bracket (Tool Heater)

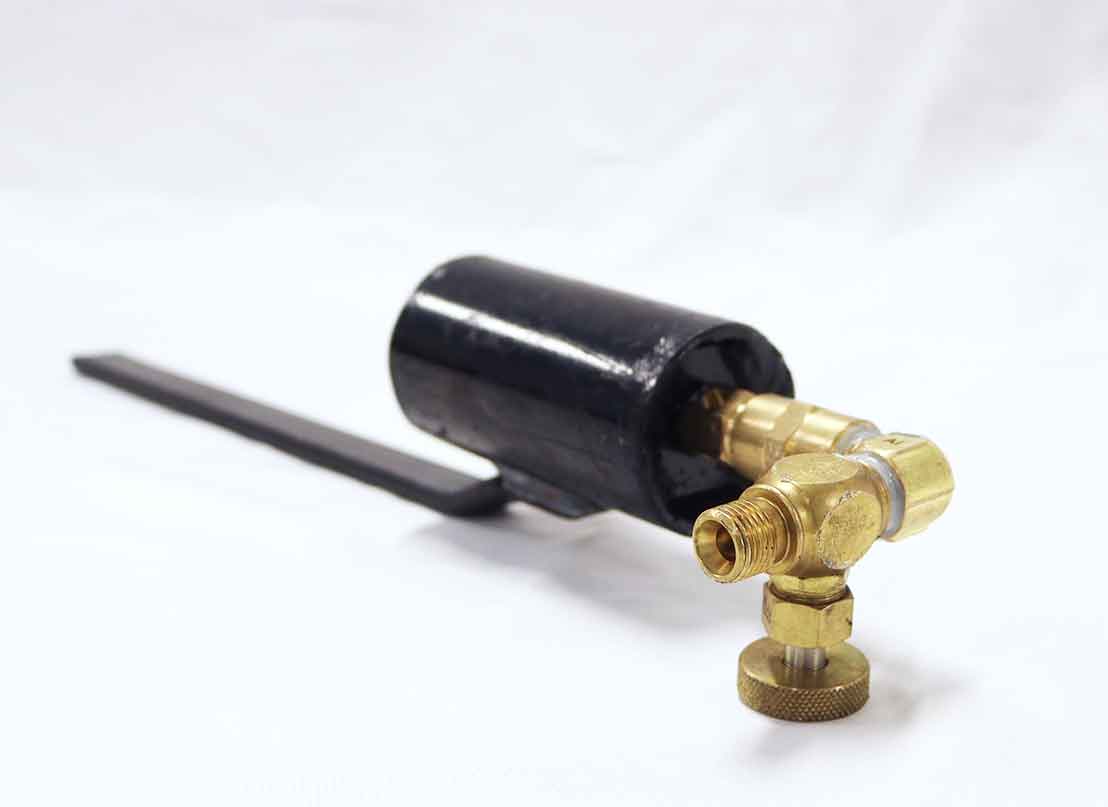

80,000 BTU Propane burner with bracket - tool heater

CMP-540

80,000 BTU Propane Burner w/Bracket (Chute Heater)
Beckett 12 volts diesel burner

21-4010

Beckett 12V Diesel Burner (Complete)
Diesel fuel filter head

17-0007

Diesel Fuel Filter Head
Diesel burner fuel filter

17-0001

Diesel Burner Fuel Filter
72 Thermocouple digital

09-7072

72" Digital Thermocouple
48 inches thermocouple digital

09-7048

48" Digital Thermocouple
Beckett electrode assembly

21-5029

Beckett Electrode Assembly
Driveshaft coupling

21-5005

Beckett Driveshaft Coupling
Burner flange mounting gasket

21-5045

Beckett Burner Flange Mounting Gasket
Beckett primary control kit

21-5037

Beckett Primary Control Kit
Diesel pressure gauge

21-1011

Diesel Pressure Gauge
Beckett ignitor assembly

21-5039

Beckett Ignitor Assembly
Fuel pump

21-5017

Beckett Fuel Pump
Blower motor

21-5001

Beckett Blower Motor
Blower wheel

21-5003

Beckett Blower Wheel

Case Studies

Seguin County Mastic Repair

Location: Seguin County, ON, Canada

Equipment Used: MM250ADT with Vanair air compressor, Billy Goat Blower

Ecocare stationed in a parking lot at Seguin county preparing to do a job
Ecocare is stationed at parking lot in Seguin county preparing to do a patch job using mastic material

Ecocare was incorporated in 1991 as a full-service landscape contractor that has evolved to provide repair and service to manage large scale facilities and infrastructure. Ecocare is selected by its customers to maintain and provide seasonal services in a single annual budget.

Ecocare has had great success using Marathon's mastic equipment in tandem with Maxwell Products Gap Patch Mastic in their commercial facility projects. The common problem of wheel rut and torsion damage has been a specialty of theirs since being introduced to the mastic solutions.

Seguin County was looking for innovative solutions for country roads that are facing maintenance and repair issues that are expensive and difficult to repair. Wheel ruts is one of these issues, with no conventional method of repair beyond complete resurfacing of the road using milling and paving machines. Ecocare and Marathon Equipment brought forward Mastic at an association meeting, and the county was willing to test the repair.

Using two MM250ADT to melt and distribute Maxwell's Gap Patch 531, Ecocare was able to level the wheel ruts on this country road in a cost-effective manner. The huge cost savings was achieved by eliminating the need to deploy large milling and paving equipment, removing existing asphalt from site and the number of workers required for the repair.

The only equipment required for this repair in addition to the MM250ADT was a Vanair air compressor and Billy Goat Blower for preparation and three work trucks to pull the melters and transport the pallets of Gap Patch 531 material.

This repair will ensure the road is not only safer to drive on but also prevent future water damage as the Gap Patch material provides a completely waterproof repair.
The video below shows in detail the process and results of the repair.

viewing the before and after of the mastic repair

MM250ADT

Tank Capacity 250 Gallons
Burner Type Diesel
Frame Type Trailer
