Cold Tack Sprayers
Model: PPES10
Portable
Portable Cold Tack Sprayer
Tank Capacity (Gallons)
Marathon's cold tack sprayers are capable of spraying water based emulsions that do not require heat, such as RS-1 or SS-1. Multiple sizes available, including a portable unit without a material tank, to pump material directly from a drum.
| Model | PPES10 |
| Type | Portable |
| Material Capacity | N/A |
| Shipping Weight | 150 lbs (68 kg) |
| Engine | 5hp |
| Pump Capacity | 10 GPM |
| Dimensions | |
| Overall Length | 40" |
| Overall Width | 24" |
| Overall Height | 18" |
| Model | PES115S |
| Type | Skid Mount |
| Material Capacity | 115 gal (435 L) |
| Shipping Weight | 500 lbs (227 kg) |
| Engine | 5hp |
| Pump Capacity | 10 GPM |
| Dimensions | |
| Overall Length | 43" |
| Overall Width | 56" |
| Overall Height | 44" |
Hot Tack Sprayers
Model: TPS115PS
115 Gallons | Propane-Fired | Skid Mount
115 gal Hot Tack Sprayer
Tank Capacity (Gallons)
Marathon's hot tack sprayers provide a fast and reliable means of heating and applying bituminous emulsions and tack coats. Our units are capable of heating a large volume of bitumen on a steady basis and offer many operator friendly features and options.
| Model | TPS115PS |
| Shipping Weight | 619 lbs (280 kg) |
| Tank Capacity | 115 gal (435 L) |
| Pump | 10 GPM |
| Burner(s) | (1) 80,000 BTU vapour propane |
| Dimensions | |
| Overall Length | 44” |
| Overall Width | 56" |
| Overall Height | 45" |
| Loading Height | 25" |
| Suspension | |
| Axle | N/A |
| Load Capacity | N/A |
| Tires | N/A |
| Model | TPS250PT |
| Shipping Weight | 1,407 lbs (638 kg) |
| Tank Capacity | 250 gal (946 L) |
| Pump | 10 GPM |
| Burner(s) | (2) 80,000 BTU vapour propane |
| Dimensions | |
| Overall Length | 134" |
| Overall Width | 72" |
| Overall Height | 68" |
| Loading Height | 47" |
| Suspension | |
| Axle | Single |
| Load Capacity | 5,200 lbs (2,359 kg) |
| Tires | (2) 225/75/R15 |
| Model | TPS500PT |
| Shipping Weight | 2,583 lbs (1,172 kg) |
| Tank Capacity | 500 gal (1,892 L) |
| Pump | 10 GPM |
| Burner(s) | (2) 80,000 BTU vapour propane |
| Dimensions | |
| Overall Length | 166" |
| Overall Width | 80" |
| Overall Height | 74" |
| Loading Height | 54" |
| Suspension | |
| Axle | Tandem |
| Load Capacity | (2) 5,200 lbs (4,718 kg) |
| Tires | (4) 225/75/R15 |

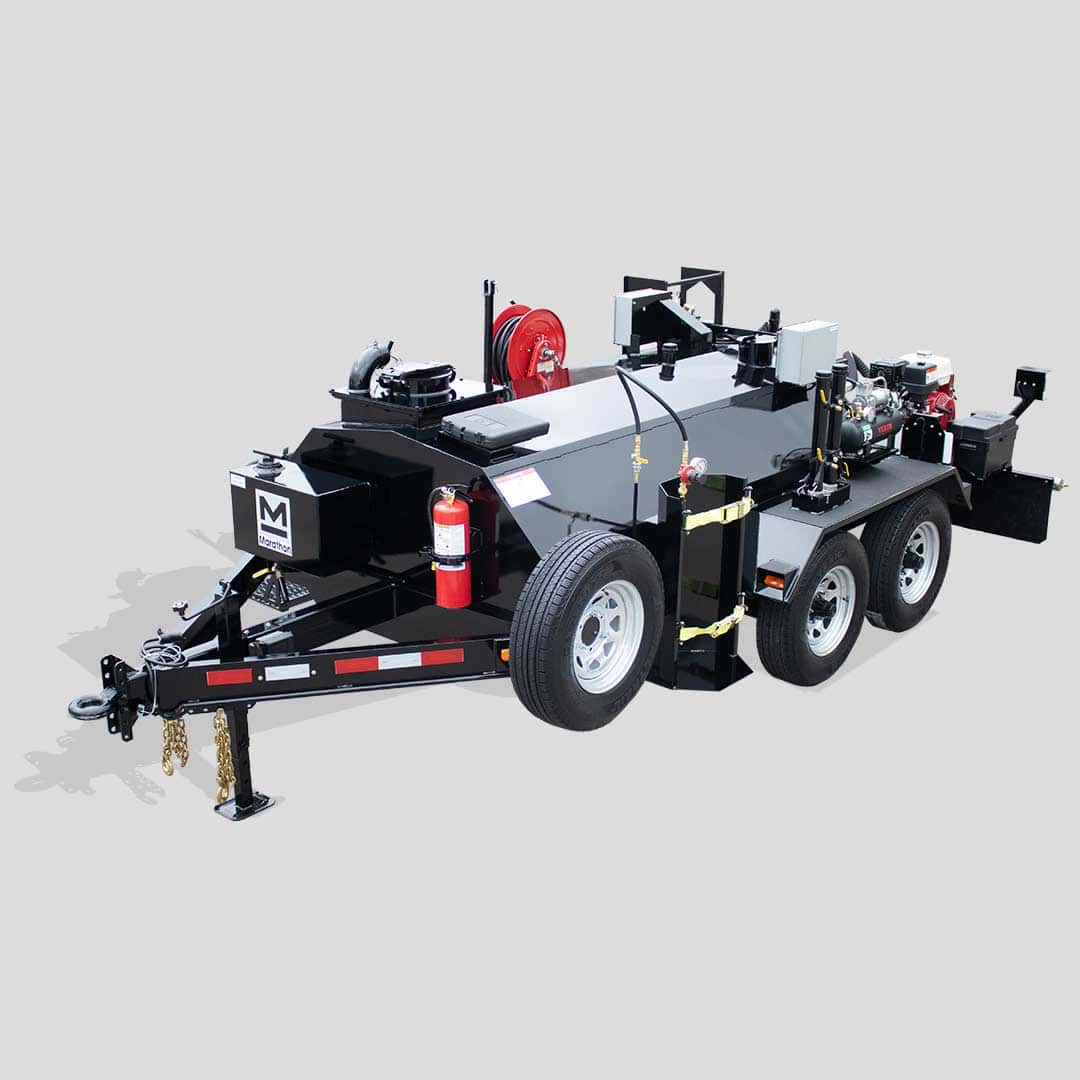

Hot Tack Liquid Distributors
Model: LD600PT
600 Gallons | Propane-Fired | Trailer
600 gal Liquid Distributor
Tank Capacity (Gallons)
Marathon's hot tack distributors provide fast and reliable means of heating and applying solvent based emulsions and will save time on road maintenance, airport work, parking lots, or wherever hot tack or other liquids must be applied. With many configurations and options available, you can customize your equipment with the options that are tailored to your job requirements.
| Model | LD600PT |
| Shipping Weight | 3,815 lbs (1,730 kg) |
| Tank Capacity | 600 gal (2,271 L) |
| Engine | 11hp Honda |
| Pump | 60 GPM |
| Burner | (1) 410,000 BTU |
| Dimensions | |
| Overall Length | 195" |
| Overall Width | 92" |
| Overall Height | 58" |
| Loading Height | 51" |
| Suspension | |
| Axle | Tandem |
| Load Capacity | 10,400 lbs(4,717 kg) |
| Tires | (4) 225/75/R15 |
| Model | LD1000PT |
| Shipping Weight | 5,269 lbs (2,395 kg) |
| Tank Capacity | 1,000 gal (3,780 L) |
| Engine | 11hp Honda |
| Pump | 60 GPM |
| Burner | (1) 410,000 BTU |
| Dimensions | |
| Overall Length | 212" |
| Overall Width | 92" |
| Overall Height | 70" |
| Loading Height | 67" |
| Suspension | |
| Axle | Tandem |
| Load Capacity | 14,000 lbs (6,364 kg) |
| Tires | (4) 235/75/R16 |
| Model | LD600DT |
| Shipping Weight | 3,815 lbs (1,730 kg) |
| Tank Capacity | 600 gal (2,271 L) |
| Engine | 11 hp Honda |
| Pump | 60 GPM |
| Burner | (1) 165,000 BTU |
| Dimensions | |
| Overall Length | 195" |
| Overall Width | 92" |
| Overall Height | 58" |
| Loading Height | 51" |
| Suspension | |
| Axle(s) | Tandem |
| Load Capacity | 10,400 lbs(4,717 kg) |
| Tires | (4) 225/85/R15 |
| Model | LD1000DT |
| Shipping Weight | 5,269 lbs (2,395 kg) |
| Tank Capacity | 1,000 gal (3,780 L) |
| Engine | 11 hp Honda |
| Pump | 60 GPM |
| Burner | (1) 165,000 BTU |
| Dimensions | |
| Overall Length | 212" |
| Overall Width | 92" |
| Overall Height | 70" |
| Loading Height | 61" |
| Suspension | |
| Axle(s) | Tandem |
| Load Capacity | 14,000 lbs (6,364 kg) |
| Tires | (4) 235/85/R16 |
Under Fired Kettle Tack Sprayer
Model: KEB260PT
260 Gallons | Propane-Fired | Trailer
260 gal Under Fired Hot Tack Kettle
Tank Capacity (Gallons)
Marathon's under fired hot tack sprayers provide a fast and reliable means of heating and applying solvent based emulsions, tack coats and asphalt cement. Our units are capable of heating a large volume of material on a steady basis and offer many operator friendly features and options.
| Model | KEB115PT |
| Shipping Weight | 1,315 lbs (596 kg) |
| Burner | (1) 410,000 BTU vapour propane |
| Material Capacity | 115 gal (435 L) |
| Dimensions | |
| Overall Length | 158” |
| Overall Width | 54” |
| Overall Height | 68” |
| Loading Height | 52" |
| Suspension | |
| Axle(s) | Single |
| Load Capacity | 3,500 lbs (1,591 kg) |
| Tires - Size | (2) 205/75/R15 |
| Model | KEB260PT |
| Shipping Weight | 2,839 lbs (1,288 kg) |
| Burner | (1) 410,000 BTU vapour propane |
| Material Capacity | 260 gal (983 L) |
| Dimensions | |
| Overall Length | 192” |
| Overall Width | 80” |
| Overall Height | 70" |
| Loading Height | 52" |
| Suspension | |
| Axle(s) | Single |
| Load Capacity | 5,200 lbs (2,363 kg) |
| Tires - Size | (2) 225/75/R15 |
| Model | KEB500PT |
| Shipping Weight | 3,589 lbs (1,627 kg) |
| Burner | (1) 410,000 BTU vapour propane |
| Material Capacity | 500 gal (1,892 L) |
| Dimensions | |
| Overall Length | 224” |
| Overall Width | 90” |
| Overall Height | 70" |
| Loading Height | 52" |
| Suspension | |
| Axle(s) | Tandem |
| Load Capacity | 10,400 lbs (4,718 kg) |
| Tires - Size | (4) 225/75/R15 |
| Model | KEB260DT |
| Shipping Weight | 2,839 lbs (1,288 kg) |
| Burner | (1) 324,000 BTU vapour propane |
| Material Capacity | 260 gal (983 L) |
| Dimensions | |
| Overall Length | 192” |
| Overall Width | 78” |
| Overall Height | 68” |
| Loading Height | 52" |
| Suspension | |
| Axle(s) | Single |
| Load Capacity | 5,200 lbs (2,363 kg) |
| Tires - Size | (2) 205/75/R15 |
| Model | KEB500DT |
| Shipping Weight | 3,589 lbs (1,627 kg) |
| Burner | (1) 324,000 BTU vapour propane |
| Material Capacity | 500 gal (1,892 L) |
| Dimensions | |
| Overall Length | 224” |
| Overall Width | 90” |
| Overall Height | 66" |
| Loading Height | 52" |
| Suspension | |
| Axle(s) | Tandem |
| Load Capacity | 10,400 lbs (4,718 kg) |
| Tires - Size | (2) 225/75/R15 |
